TB6-4500BBA2

Power Line Filter Modules Overview

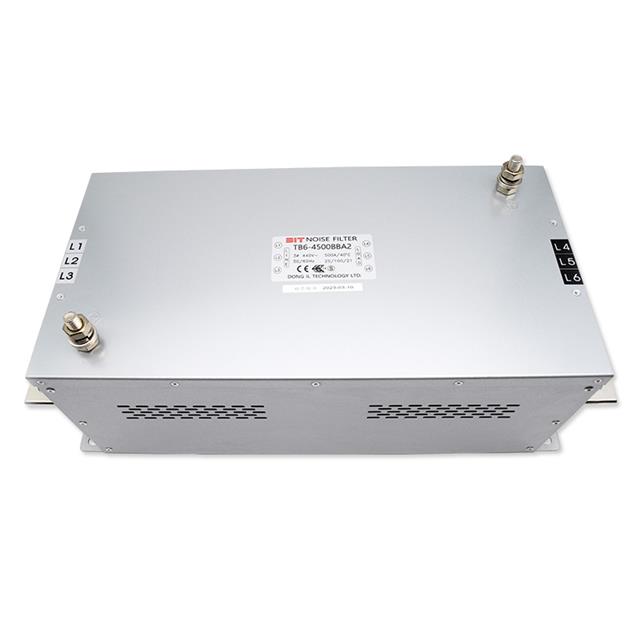

The DIT TB6-4500BBA2 is a three-phase (Delta) EMC/EMI line filter module designed for high-current industrial applications. It supports an operating frequency of 50 to 60 Hz and handles a rated output current of 500 A. The unit features a chassis mount configuration with terminal post connections, ensuring robust integration into power distribution systems.

Power Line Filter Modules Feature Summary

• Provides significant attenuation against high-voltage pulses
• Features metal housing for effective electromagnetic shielding
• Delivers excellent filtering characteristics for both differential and common mode noise

Power Line Filter Modules Applications

• CNC machine tools
• Industrial inverters and converters
• Telecommunications equipment
• Factory automation devices
• Elevator systems

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official DIT documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with Delta three-phase configurations and 500 A current requirements before procurement. Cross-reference datasheets for mounting specifications and thermal performance data.

Power Line Filter Modules Selection Notes

Select this component for environments requiring robust EMI suppression in high-power three-phase circuits. Consider the chassis mount style and terminal post interface for panel integration. Evaluate thermal management needs given the 500 A rating and ensure adequate ventilation within the enclosure design.

Power Line Filter Modules Part Context

This model belongs to the DIT TB6-2/4 series of three-phase filters. These modules are epoxy-potted for durability and safety compliance, including CE and SEMKO+ENEC certifications. The series is engineered for industrial settings demanding reliable noise reduction and pulse attenuation.

Power Line Filter Modules Replacement Considerations

Consult official DIT catalogs for direct cross-references. Verify that any substitute maintains the 500 A rating, Delta phase configuration, and chassis mounting form factor to ensure system compatibility.
