TB6-5010D3DG

Power Line Filter Modules Overview

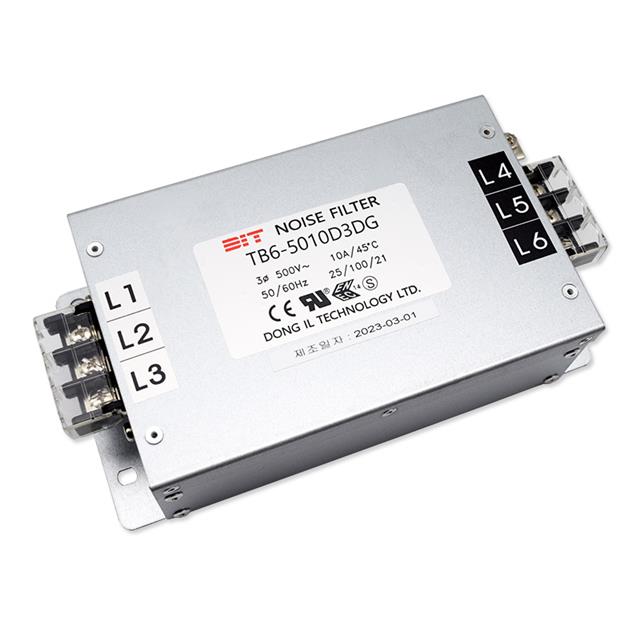

The TB6-5010D3DG is a three-phase (Delta) EMC/EMI line filter module manufactured by DIT. It is rated for a current of 10 A and operates at frequencies of 50 to 60 Hz. The unit features two ports and utilizes epoxy resin potting within a metal housing to provide effective shielding against high-voltage pulses. It offers superior filtering characteristics for both differential mode and common mode noise, ensuring compliance with safety standards including CE, SEMKO, and ENEC.

Power Line Filter Modules Feature Summary

• Epoxy resin potting provides robust protection and structural integrity
• Metal housing ensures effective electromagnetic shielding
• Superior attenuation of high-voltage pulses
• Effective filtering for both differential and common mode interference

Power Line Filter Modules Applications

• Industrial equipment such as CNC machines
• Inverters and converters
• Telecommunications equipment
• Factory automation devices
• Elevator systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'D3DG' against official DIT documentation to confirm exact pinout and mounting configuration. Ensure the Delta phase requirement matches the installation site. Confirm that the 10 A rating accommodates peak loads without exceeding thermal limits defined in the datasheet.

Power Line Filter Modules Selection Notes

Select this model when three-phase Delta topology is required for 50-60 Hz power lines. The 10 A rating suits moderate industrial loads. Consider the metal enclosure for environments requiring enhanced physical protection and EMI suppression compared to plastic-cased alternatives.

Power Line Filter Modules Part Context

This component belongs to the TB6 series of power line filters from DIT. These modules are designed for industrial applications where strict EMC compliance is necessary. The series typically includes various current ratings and phase configurations to support diverse machinery requirements.

Power Line Filter Modules Replacement Considerations

Cross-reference with other TB6 series variants if current ratings differ. Verify compatibility with existing mounting hardware due to potential dimensional variations across the product line.
