TB6-5060D3DH

Power Line Filter Modules Overview

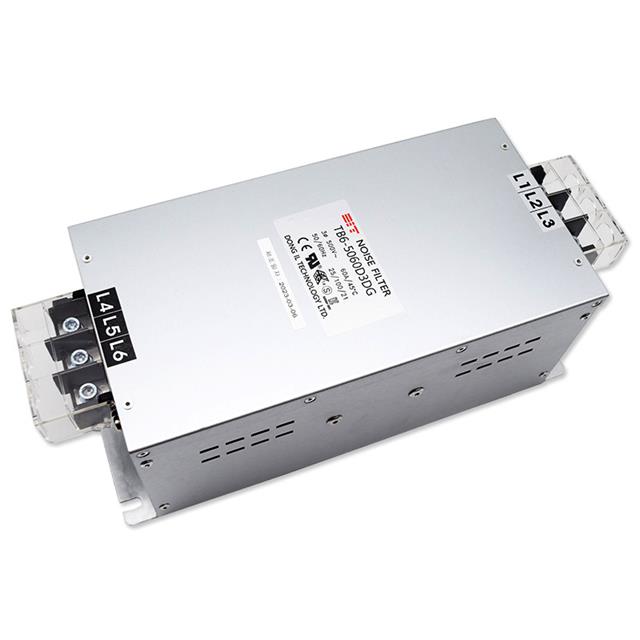

The TB6-5060D3DH is a three-phase (Delta) EMC/EMI line filter module manufactured by DIT. It is rated for a current of 60 A and operates at frequencies of 50 to 60 Hz. The unit features a two-stage filtering design intended to suppress electromagnetic interference in power lines. It utilizes a chassis mounting configuration for installation.

Power Line Filter Modules Feature Summary

• Two-stage EMC/EMI filtering architecture
• Chassis mount form factor

Power Line Filter Modules Applications

• Industrial power systems
• Three-phase equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with specific Delta phase requirements. Confirm that the 60 A rating and chassis mounting style align with the target application's physical and electrical constraints before procurement.

Power Line Filter Modules Selection Notes

Select this component when a dedicated two-stage solution for three-phase Delta networks is required. Ensure the system voltage and frequency specifications match the 50/60 Hz operational range. Verify that the chassis mounting method is compatible with the available enclosure space.

Power Line Filter Modules Part Context

This model belongs to the TB6 series of power line filter modules from DIT, designed for industrial electromagnetic compatibility applications. The series includes variants with different current ratings and connection types, such as terminal block options, to suit various power distribution needs.

Power Line Filter Modules Replacement Considerations

Cross-reference with other DIT TB6 series models like the TB6-5080D3DH or TB6-5016D3DH if current ratings differ. Verify that substitute parts maintain the same three-phase Delta configuration and chassis mounting interface.
