TB6-5100D6DG

Power Line Filter Modules Overview

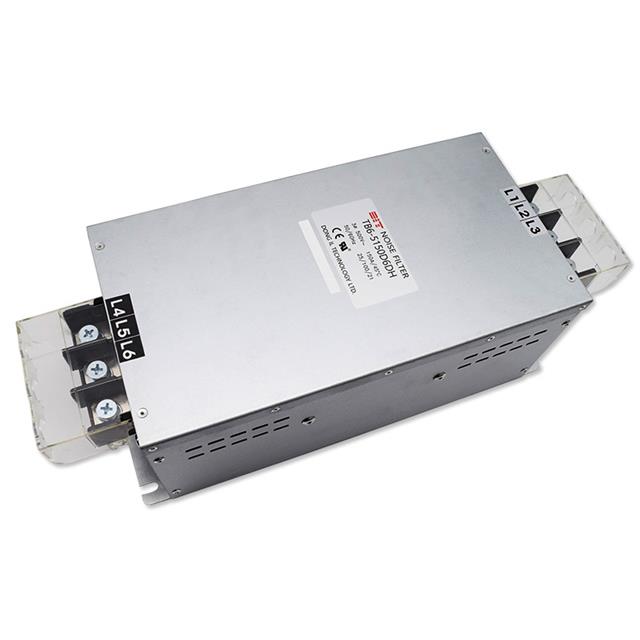

The TB6-5100D6DG is a three-phase (Delta) EMC/EMI line filter module manufactured by DIT. It features a two-stage design with terminal block connections and is rated for 100 A at 50 ~ 60Hz. The unit utilizes epoxy resin potting and a metal housing for shielding.

Power Line Filter Modules Feature Summary

• Two-stage architecture providing remarkable attenuation for high voltage impulses
• Epoxy resin potted construction for durability
• Metal housing offering effective electromagnetic shielding

Power Line Filter Modules Applications

• Industrial equipment such as CNC machines
• Inverters and converters
• Telecommunications equipment
• Factory automation devices
• Elevator systems

Power Line Filter Modules Procurement Notes

Verify the specific model suffix to confirm the exact attenuation type, as the series includes both high attenuation and standard variants. Confirm that the Delta configuration matches the system requirements. Ensure the terminal block interface aligns with existing wiring infrastructure before procurement.

Power Line Filter Modules Selection Notes

Select this component when high current handling capacity of 100 A is required for three-phase delta networks. The two-stage design is suitable for applications demanding significant high-voltage impulse suppression. Verify compatibility with the operating frequency range of 50 to 60Hz.

Power Line Filter Modules Part Context

This part belongs to the TB6-2/4 series of three-phase filters from Dong Il Technology. The series is characterized by epoxy potting and metal shielding. It is designed for industrial environments requiring robust EMI/EMC protection against conducted noise.

Power Line Filter Modules Replacement Considerations

Cross-reference with other models in the TB6 series for similar current ratings. Verify that any substitute maintains the two-stage attenuation characteristics and terminal block mounting style to ensure mechanical and electrical compatibility.
