TB6-5100D6DH

Power Line Filter Modules Overview

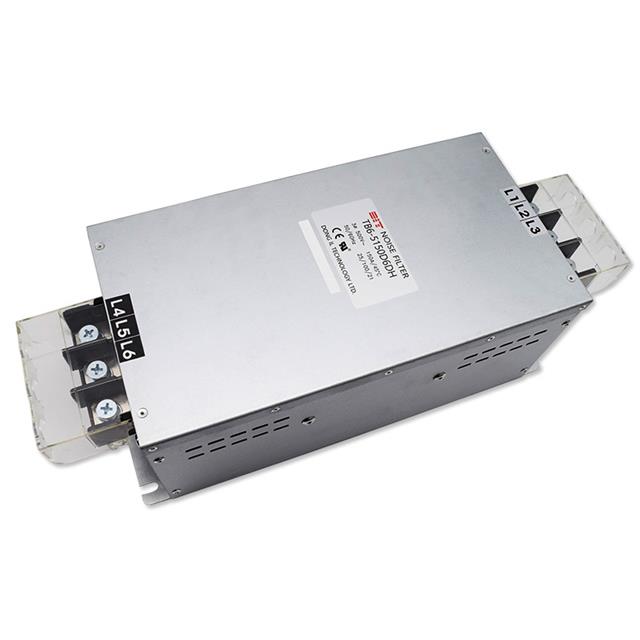

The TB6-5100D6DH is a three-phase (Delta) EMC/EMI power line filter module manufactured by DIT. It features a two-stage terminal block design and is rated for 100 A current at 50 ~ 60Hz frequencies. The unit utilizes epoxy resin potting for internal components and is housed in a metal enclosure to provide effective shielding against electromagnetic interference.

Power Line Filter Modules Feature Summary

• Provides significant attenuation of high-voltage pulses
• Metal housing ensures effective electromagnetic shielding
• Delivers excellent filtering characteristics for both differential mode and common mode noise

Power Line Filter Modules Applications

• Industrial equipment such as CNC machines
• Inverters and converters
• Telecommunications equipment
• Factory automation devices
• Elevator systems

Power Line Filter Modules Procurement Notes

Verify the specific model suffix to confirm the exact electrical ratings and configuration, as variations exist within the series. Ensure compatibility with the target three-phase Delta network voltage and frequency requirements before integration. Confirm that the terminal block interface matches the existing wiring infrastructure.

Power Line Filter Modules Selection Notes

Select this component when robust EMI suppression is required for high-current industrial applications. The metal casing and epoxy potting offer durability in demanding environments. Consider the two-stage filtering capability for superior noise reduction compared to single-stage alternatives.

Power Line Filter Modules Part Context

This part belongs to the TB6-2/4 series of three-phase filters from DIT. These modules are designed for industrial power line conditioning, offering reliable performance in settings where electromagnetic compatibility is critical for system stability and regulatory compliance.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other models from the TB6-2/4 series with matching current ratings. Verify that any replacement maintains the same three-phase Delta configuration and terminal block interface to ensure seamless installation without rewiring.
