TB6-5150D6DG

Power Line Filter Modules Overview

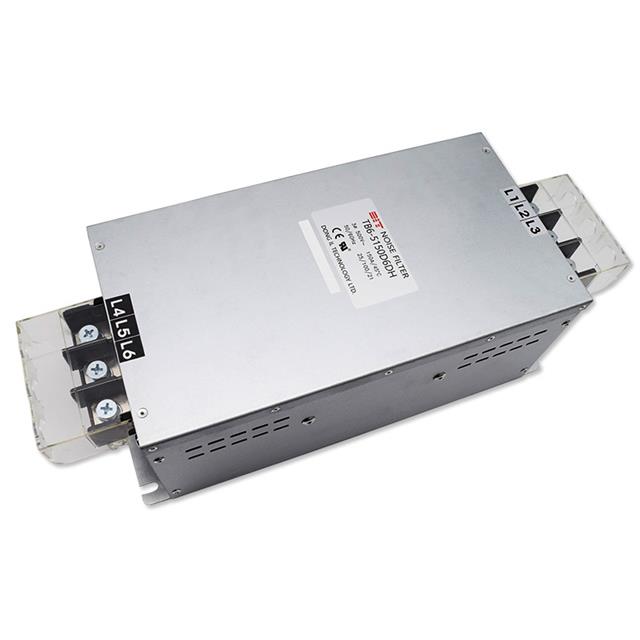

The TB6-5150D6DG is a three-phase (Delta) EMC/EMI line filter module manufactured by DIT. It features a chassis mount design and supports a current rating of 150 A at 50–60 Hz frequencies. The component utilizes a two-stage terminal block architecture to suppress conducted emissions and harmonic content.

Power Line Filter Modules Feature Summary

• Employs a two-stage filtering architecture for emission suppression
• Designed for chassis mounting in industrial power systems
• Supports three-phase Delta configuration

Power Line Filter Modules Applications

• Industrial power distribution systems
• EMC/EMI noise reduction in electrical panels
• Harmonic content suppression for three-phase loads

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'DG' against official DIT documentation to confirm exact terminal block specifications and dimensional tolerances. Ensure the input voltage range aligns with the 50–60 Hz operational requirement. Confirm that the chassis mounting hardware matches the installation environment constraints before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this model when a robust, high-current solution is required for three-phase Delta networks. The two-stage architecture provides effective attenuation for both conducted emissions and harmonics. Ensure the physical chassis dimensions accommodate the available panel space and that the 150 A rating meets the peak load requirements of the application.

Power Line Filter Modules Part Context

This component belongs to the DIT Power Line Filter Modules series, which focuses on electromagnetic interference mitigation. The TB6 series is engineered for industrial environments requiring reliable noise suppression. The DG variant specifically denotes the terminal block configuration within the broader product family.

Power Line Filter Modules Replacement Considerations

Consult official DIT cross-reference lists for direct substitutes. Verify that any alternative maintains the 150 A rating and three-phase Delta compatibility. Ensure mechanical mounting interfaces are identical to avoid redesigning the chassis enclosure.
