TB6-5200D9DG

Power Line Filter Modules Overview

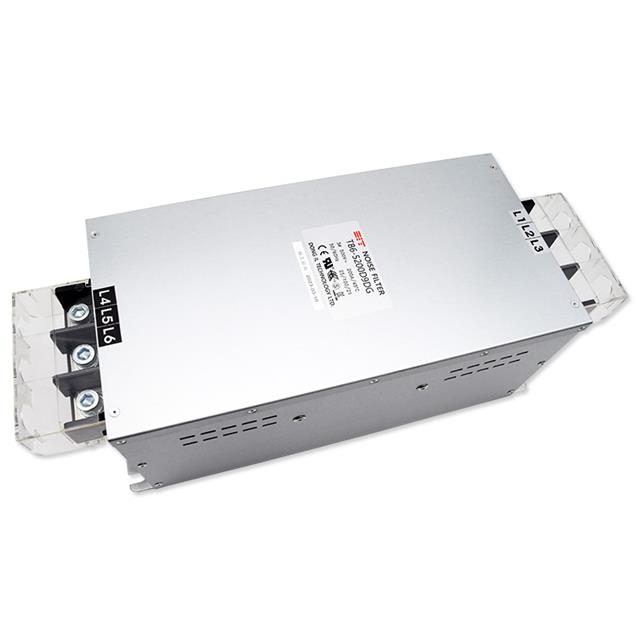

The DIT TB6-5200D9DG is a three-phase power line filter module designed for industrial AC systems. It features a rated current capacity of 200 A and operates at frequencies between 50 Hz and 60 Hz. The unit supports phase-to-ground/neutral voltages up to 290 V and phase-to-phase voltages up to 500 V. Certified by CE, this component serves general-purpose applications requiring robust electrical filtering.

Power Line Filter Modules Feature Summary

• Provides three-phase (Delta) filtering capabilities for AC power lines
• Engineered for high-current industrial environments with a 200 A rating
• Certified to meet CE regulatory standards for safety and compliance

Power Line Filter Modules Applications

• General purpose industrial power distribution
• AC system noise suppression
• Electrical equipment protection

Power Line Filter Modules Procurement Notes

Verify the specific voltage ratings against your system requirements before installation. Confirm that the 200 A current capacity aligns with your load specifications. Ensure compatibility with 50/60 Hz operating frequencies. Check for CE certification marks on the physical unit to guarantee authenticity and regulatory compliance.

Power Line Filter Modules Selection Notes

Select this module when three-phase Delta filtering is required for high-current AC applications. Consider the 200 A rating and 500 V phase-to-phase limit as primary constraints. Evaluate space availability for the module form factor. Ensure the operating environment supports the specified frequency range for optimal performance.

Power Line Filter Modules Part Context

This component belongs to the TB6-2,5 G/H series of power line filter modules manufactured by DIT. These units are engineered for durability in demanding industrial settings. The series focuses on providing reliable electromagnetic interference reduction for three-phase power systems without compromising current handling capabilities.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
