TB6-5200D9DH

Power Line Filter Modules Overview

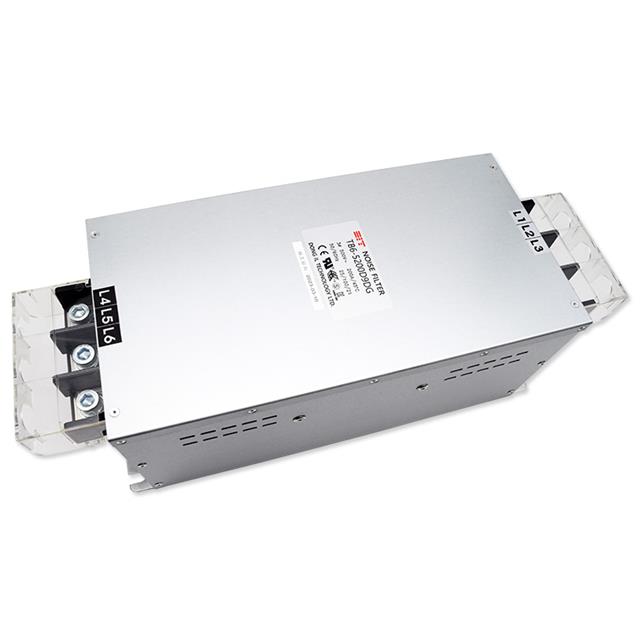

The TB6-5200D9DH is a three-phase (Delta) EMC/EMI line filter module manufactured by DIT. It is rated for a current of 200 A and operates at frequencies between 50 Hz and 60 Hz. The component features a two-stage filtering architecture designed to suppress electromagnetic interference in power lines. It utilizes a terminal block connection method for installation.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Terminal block connection interface
• Three-phase Delta configuration

Power Line Filter Modules Applications

• Industrial equipment such as CNC machines
• Inverter systems
• Electric vehicle chargers

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against official DIT documentation to ensure correct pinout and mounting specifications. Confirm that the terminal block type matches the intended wiring infrastructure. Cross-reference the 200 A rating with actual load requirements to prevent thermal issues. Ensure the Delta phase configuration aligns with the system topology before procurement.

Power Line Filter Modules Selection Notes

Select this model when high-current three-phase filtering is required for Delta configurations. The two-stage design offers superior attenuation compared to single-stage alternatives. Ensure the application environment supports the thermal characteristics of a 200 A rated unit. Verify compatibility with 50-60 Hz operational frequencies.

Power Line Filter Modules Part Context

This component belongs to the TB6 series of power line filter modules from DIT, which are engineered for industrial EMC/EMI compliance. The series typically includes various current ratings and phase configurations to address diverse power electronics needs.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
