TB6-B006NBDC

Power Line Filter Modules Overview

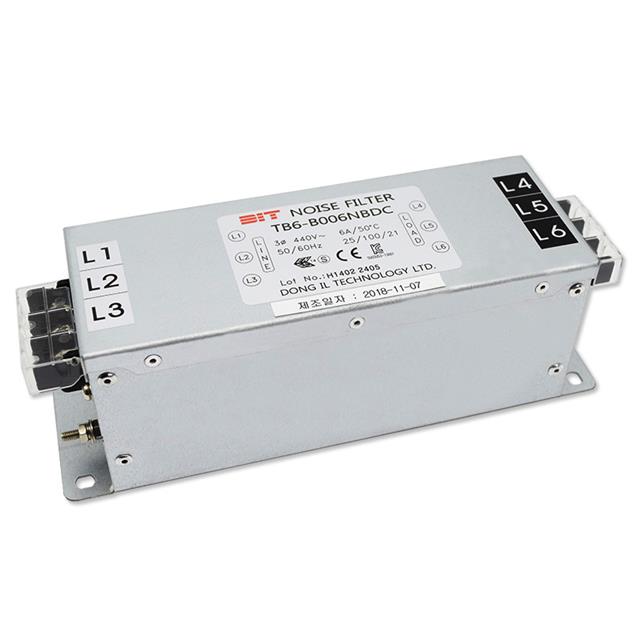

The TB6-B006NBDC is a three-phase EMC/EMI line filter module manufactured by DIT. It features a two-stage configuration designed for industrial applications. The unit supports a rated AC voltage of 254 V phase-to-ground and 440 V phase-to-phase. It handles a continuous current of 6 A at operating frequencies between 50 Hz and 60 Hz. The device operates within a temperature range of -25°C to 100°C and includes a maximum leakage current of 5 mA with a temperature rise limit of 50°C.

Power Line Filter Modules Feature Summary

• Two-stage electromagnetic interference filtering architecture
• Chassis-mount design for industrial integration
• Compliant with RoHS environmental standards

Power Line Filter Modules Applications

• Industrial power distribution systems
• Electromagnetic compatibility protection for three-phase equipment
• General-purpose industrial machinery noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the TB6-B006NBDC to confirm mechanical dimensions and terminal configurations before installation. Ensure the application environment remains within the specified -25°C to 100°C operating temperature range. Confirm that the system voltage does not exceed the 440 V phase-to-phase rating. Check for compliance requirements relevant to your region, noting the component is RoHS compliant.

Power Line Filter Modules Selection Notes

Select this model when a six-ampere capacity is required for three-phase lines. The two-stage design offers enhanced attenuation compared to single-stage alternatives. Consider the chassis-mount form factor for panel integration. Verify that the 5 mA leakage current meets safety isolation requirements for the specific load. The 50-60 Hz frequency range suits standard utility power applications.

Power Line Filter Modules Part Context

This component belongs to the TB6-B series of power line filter modules from DIT. The series provides standardized solutions for electromagnetic interference reduction in industrial settings. Similar models in the series, such as the TB6-B030NBDC, offer higher current ratings while maintaining similar voltage specifications and mounting styles.

Power Line Filter Modules Replacement Considerations

Cross-reference with other TB6-B series units if current requirements differ. Ensure any substitute maintains the two-stage topology and 440 V phase-to-phase rating. Verify that replacement components match the chassis-mount footprint and terminal layout to avoid mechanical modification.
