TB6-B040AS

Power Line Filter Modules Overview

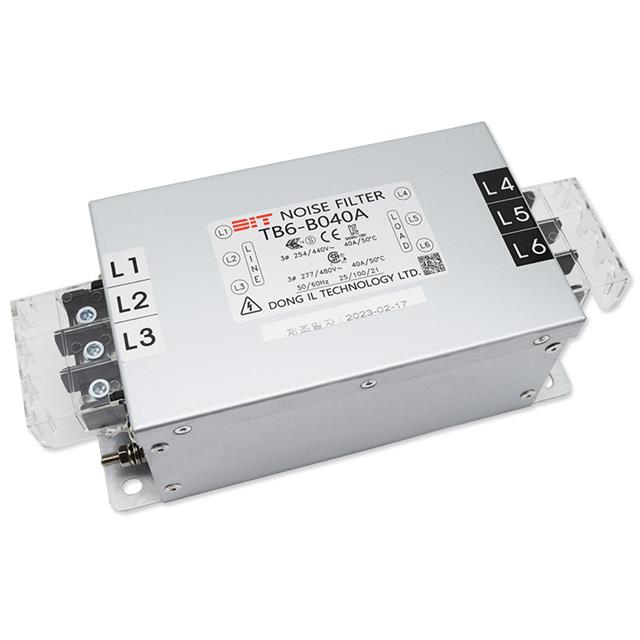

The TB6-B040AS is a three-phase (Delta) EMC/EMI line filter module manufactured by DIT, designed for chassis mounting. It supports an AC voltage range of 50 to 60 Hz and handles a rated current of 40 A. The unit features a single-stage filtering architecture housed in a metal enclosure with epoxy potting for structural integrity and shielding effectiveness. This component provides significant attenuation against high-voltage pulses while maintaining excellent differential and common-mode filtering characteristics.

Power Line Filter Modules Feature Summary

• Epoxy-potted construction for robust mechanical stability
• Metal housing providing effective electromagnetic shielding
• High attenuation performance against high-voltage pulses
• Superior filtering capabilities for both differential and common-mode noise

Power Line Filter Modules Applications

• CNC machine tools
• Industrial inverters and converters
• Telecommunications equipment
• Factory automation systems
• Elevator control systems

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official DIT documentation to ensure correct configuration. Confirm that the required current rating and voltage specifications align with your system's operational parameters before procurement. Check for relevant safety certifications such as CE or SEMKO+ENEC if mandated by your regional compliance requirements. Ensure chassis mounting provisions match your enclosure design.

Power Line Filter Modules Selection Notes

Select this model when a dedicated three-phase solution is required for industrial environments subject to high-voltage pulse interference. The 40 A rating suits moderate-power applications where space constraints favor a compact chassis-mount form factor. Consider the epoxy potting and metal shielding benefits for installations requiring enhanced durability and EMI suppression compared to standard open-frame filters.

Power Line Filter Modules Part Context

This component belongs to the TB6-2/4 series of three-phase filters from DIT. The series utilizes epoxy potting and metal enclosures to deliver reliable performance in demanding industrial settings. Similar models in the lineup vary primarily in current handling capacity and physical dimensions, allowing for scalable deployment across different power levels within factory automation and machinery sectors.

Power Line Filter Modules Replacement Considerations

Consult official DIT substitution guides for direct equivalents. Verify that any alternative maintains identical phase configuration, current ratings, and mounting dimensions to ensure compatibility without redesigning the host equipment interface.
