TB6-B080LAS

Power Line Filter Modules Overview

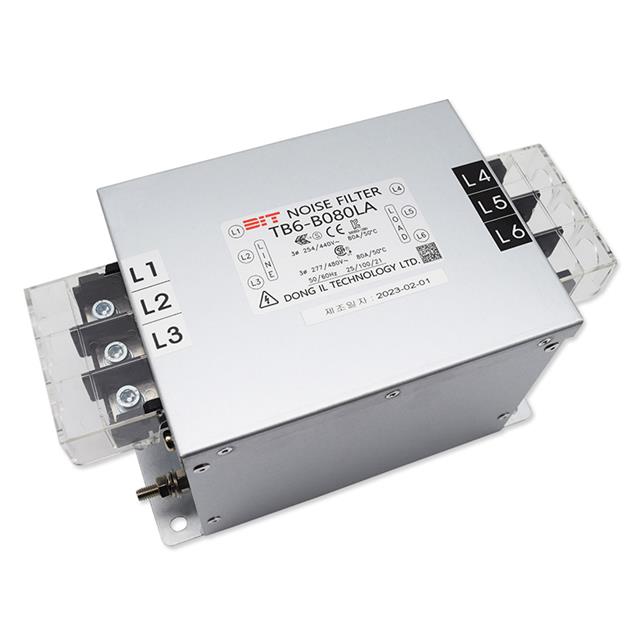

The TB6-B080LAS is a three-phase EMI/EMC power line filter module manufactured by Dong Il Technology. It is rated for a continuous current of 80 A and operates at frequencies of 50 to 60 Hz. The unit features epoxy resin potting for environmental protection and durability. It supports an operating temperature range from -25°C to 100°C. The component holds multiple international safety certifications, including CE, CSA, ENEC, and SEMKO.

Power Line Filter Modules Feature Summary

• Three-phase configuration with epoxy resin potted construction
• Designed for general purpose EMI/EMC suppression applications
• Complies with major international safety standards

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• General purpose electrical equipment filtering
• Three-phase motor drive input stages

Power Line Filter Modules Procurement Notes

Verify the specific suffix (LAS) against the manufacturer's latest datasheet to confirm terminal type and mounting configuration. Ensure the required current rating of 80 A matches the system load. Confirm that the operating temperature range of -25°C to 100°C suits the installation environment. Check for required certification marks such as CE or CSA for the target market.

Power Line Filter Modules Selection Notes

Select this model when a robust, potted three-phase filter is required for 80 A circuits. Consider the physical dimensions and mounting requirements relative to the enclosure space. Evaluate if the standard frequency range of 50-60 Hz aligns with the power supply specifications. Compare attenuation performance needs against other series options if higher isolation is necessary.

Power Line Filter Modules Part Context

This component belongs to the TB6-B series of power line filters. The series includes variants with different current ratings such as 60 A, 100 A, and 150 A. All units in this family share similar epoxy-potted designs intended for industrial environments. The TB6-B080LAS specifically addresses mid-range current requirements within this product line.

Power Line Filter Modules Replacement Considerations

Direct substitutes include other TB6-B series models like TB6-B060LA* or TB6-B100LA* if current ratings can be adjusted. Verify pin compatibility and mounting hole patterns before replacing. Consult the manufacturer for cross-reference lists to ensure equivalent electrical performance and certification status.
