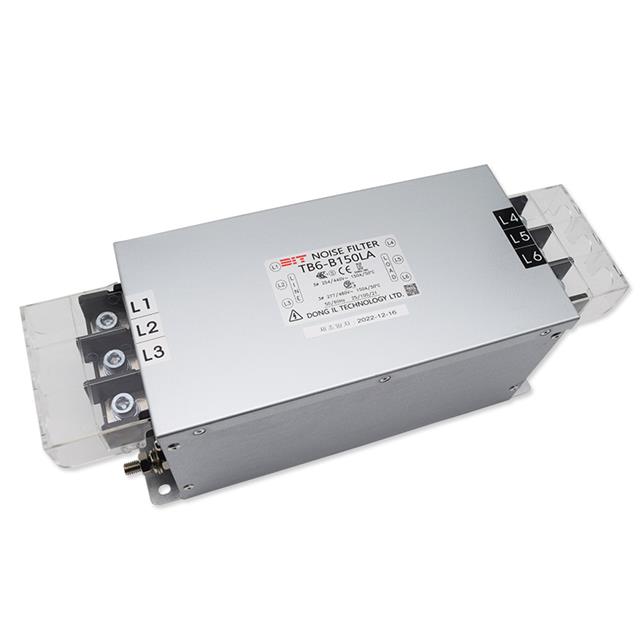

TB6-B150LAS is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists DIT. Its product description is LINE FILTER 150A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for TB6-B150LAS
- Description：LINE FILTER 150A CHASSIS MOUNT
- Series：TB6-B
- Mfr：DIT
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：150 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：254 V
- Voltage - Rated AC (Phase to Phase)：440 V
Power Line Filter Modules datasheet and documents for TB6-B150LAS
Power Line Filter Modules Overview
The TB6-B150LAS is a three-phase (delta) EMC/EMI line filter module manufactured by DIT. It is designed for AC power lines operating at 50 to 60Hz with a rated current of 150 A. The unit features a chassis mount configuration and utilizes a metal case for shielding. The internal components are potted with epoxy resin to ensure durability and environmental resistance.
Power Line Filter Modules Feature Summary
- Three-phase delta configuration with excellent differential and common-mode filtering characteristics
- Metal case construction providing effective electromagnetic shielding
- Epoxy resin potting for robust structural integrity and protection
Power Line Filter Modules Applications
- Industrial equipment such as CNC machines
- Inverters and converters
- Telecommunications equipment
- Factory automation devices
- Elevator systems
Power Line Filter Modules Procurement Notes
Verify the specific suffix LAS against official DIT documentation to confirm exact rating variations. Confirm chassis mounting dimensions and terminal types prior to integration. Standard lead times may vary; consult authorized distributors for current availability status and delivery schedules.
Power Line Filter Modules Selection Notes
Select this model for applications requiring high-current three-phase filtering in delta configurations. Ensure the operating environment accommodates chassis mounting constraints. Verify that the 150 A rating aligns with peak load requirements. Consider the metal enclosure's thermal dissipation properties during system design.
Power Line Filter Modules Part Context
This component belongs to the TB6 series of power line filters from Dong Il Technology (DIT). The series includes various ratings and configurations for industrial power quality management. The TB6-B150LAS specifically addresses high-current noise suppression needs in heavy industrial settings.
Power Line Filter Modules Replacement Considerations
Cross-reference with other TB6 series variants if current ratings differ. Verify compatibility with existing mounting hardware and terminal connections when substituting similar models from the same manufacturer.
