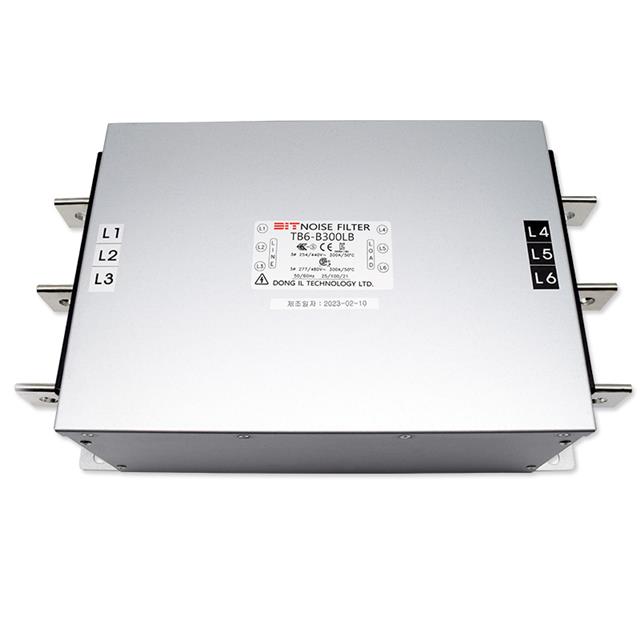

TB6-B300LBS is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists DIT. Its product description is LINE FILTER 300A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for TB6-B300LBS
- Description：LINE FILTER 300A CHASSIS MOUNT
- Series：TB6-B
- Mfr：DIT
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：300 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, SEMKO
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：254 V
- Voltage - Rated AC (Phase to Phase)：440 V
Power Line Filter Modules datasheet and documents for TB6-B300LBS
Power Line Filter Modules Overview
The TB6-B300LBS is a two-stage power line filter module manufactured by DIT, designed for chassis mounting. It supports a rated AC voltage of 254 V phase-to-ground/neutral and 440 V phase-to-phase. The unit handles a current capacity of 300 A at 50-60 Hz frequencies. This component functions as an EMC/EMI line filter utilizing terminal block connections.
Power Line Filter Modules Feature Summary
- Two-stage filtering configuration for enhanced noise suppression
- Chassis mount design for secure installation
- Terminal block interface for electrical connectivity
Power Line Filter Modules Applications
- Industrial power distribution systems requiring EMI mitigation
- Three-phase delta AC power line conditioning
- Equipment protection against electromagnetic interference
Power Line Filter Modules Procurement Notes
Verify the specific manufacturer part number TB6-B300LBS against official DIT documentation to confirm compatibility with your system's voltage and current requirements. Ensure that the chassis mounting specifications align with your enclosure design. Confirm the terminal block type matches your wiring infrastructure before procurement.
Power Line Filter Modules Selection Notes
Select this model when a 300 A rating and 440 V phase-to-phase capability are required for three-phase applications. The two-stage architecture provides superior attenuation compared to single-stage units. Verify that the physical dimensions accommodate the available chassis space and that the terminal block connection method suits the existing cabling setup.
Power Line Filter Modules Part Context
This component belongs to the DIT power line filter module series, specifically engineered for industrial environments. It addresses electromagnetic compatibility challenges in high-current AC power lines. The product is categorized under line filters intended for reducing conducted emissions from electrical equipment.
Power Line Filter Modules Replacement Considerations
Publicly confirmed substitute part numbers for the TB6-B300LBS are not available in the provided source material. Consult DIT technical support or authorized distributors for verified cross-reference information.
