TB6-B400LBS

$492.68

Description：LINE FILTER 400A CHASSIS MOUNT
Series：TB6-B
Mfr：DIT
Package：Box

SKU:71d045e7791c Category: Power Line Filter Modules Brand: DIT

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TB6-B400LBS is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists DIT. Its product description is LINE FILTER 400A CHASSIS MOUNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for TB6-B400LBS

Description：LINE FILTER 400A CHASSIS MOUNT
Series：TB6-B
Mfr：DIT
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：400 A
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CSA, ENEC, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：254 V
Voltage - Rated AC (Phase to Phase)：440 V

Power Line Filter Modules datasheet and documents for TB6-B400LBS

TB6-B400LBS

Power Line Filter Modules Overview

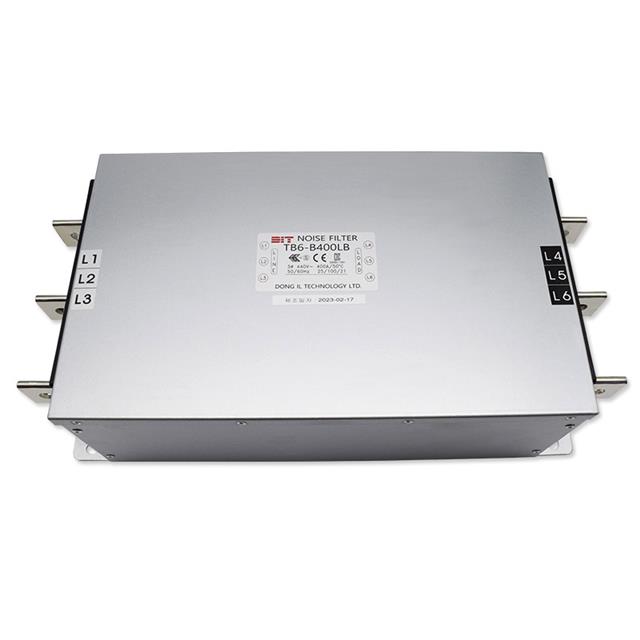

The DIT TB6-B400LBS is a three-phase delta EMC/EMI line filter module rated for 400 A at 50–60 Hz. It features a two-stage design with terminal block connections and operates within -25°C to 100°C. Certified by CE, CSA, ENEC, and SEMKO, it serves general-purpose applications requiring robust power line noise suppression.

Power Line Filter Modules Feature Summary

Two-stage EMC/EMI filtering architecture
Terminal block connection interface
Three-phase delta configuration

Power Line Filter Modules Applications

General purpose power line filtering
Industrial equipment noise suppression
Ballast water treatment systems

Power Line Filter Modules Procurement Notes

Verify certification marks (CE, CSA, ENEC, SEMKO) match regional requirements. Confirm current rating (400 A) and frequency range (50–60 Hz) align with system specifications. Check operating temperature limits (-25°C to 100°C) for environmental compatibility.

Power Line Filter Modules Selection Notes

Select this model for high-current three-phase delta applications requiring certified EMI/EMC suppression. Ensure terminal block mounting fits panel constraints. Validate thermal management capabilities within the specified operating temperature range.

Power Line Filter Modules Part Context

Part of DIT's power line filter modules series. Designed for industrial environments needing reliable noise filtration. Competes in the general-purpose EMC filter segment.
