TB62209FG,EL

Overview

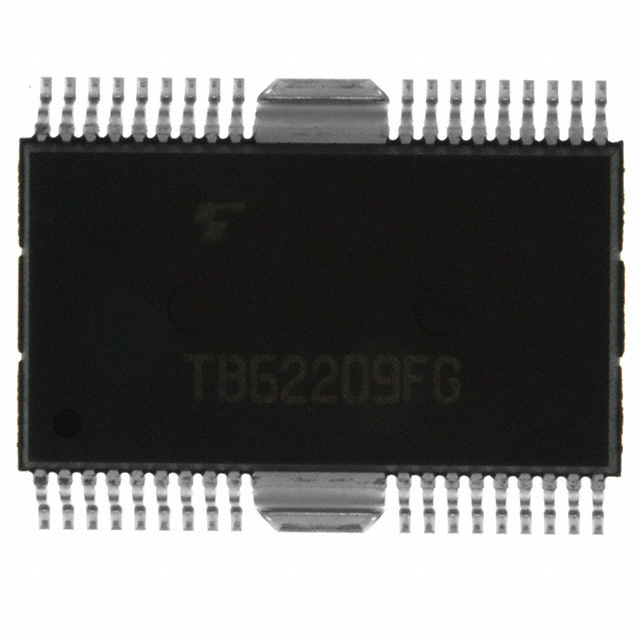

The TB62209FG,EL is a bipolar stepper motor driver IC manufactured by Toshiba Semiconductor and Storage. It utilizes DMOS technology to integrate control logic and power stages into a single chip. The device operates within a supply voltage range of 4.5 V to 5.5 V and supports load voltages up to 38 V. It features a 36-pin HSOP package with dimensions of 16.5 mm x 8.8 mm x 2.3 mm. The component functions across an operating temperature range from -40 °C to +85 °C.

Feature Summary

• Integrates full control logic and power output stages for bipolar stepper motors
• Supports parallel interface operation for simplified system design
• Utilizes DMOS technology for efficient power management

Applications

• Bipolar stepper motor control systems
• General purpose motion control applications

Procurement Notes

Verify the specific manufacturer designation and package type against official Toshiba Semiconductor and Storage documentation before procurement. Confirm that the HSOP-36 footprint matches the target PCB layout. Ensure compatibility with the required supply voltage and thermal management specifications for the intended operating environment.

Selection Notes

Select this component when a fully integrated solution for bipolar stepper motors is required. The parallel interface simplifies microcontroller connections compared to serial alternatives. Consider the thermal performance and package size constraints relative to the application's space limitations and heat dissipation requirements.

Part Context

This part belongs to the TB6220x series of motor drivers from Toshiba Semiconductor and Storage. These components are designed to provide robust driving capabilities for stepper motors in compact form factors. The series typically offers integrated protection features and simplified interfacing options for various industrial and consumer electronics applications.
