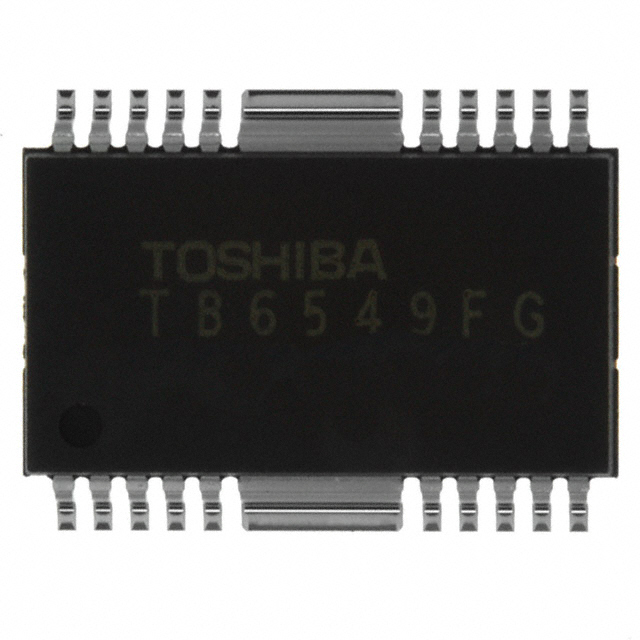

TB6549FG(O,EL)

Description：IC MOTOR DRIVER 10V-27V 20HSOP
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e27a4607be64 Category: Motor Drivers, Controllers Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC MOTOR DRIVER 10V-27V 20HSOP
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：-
Motor Type - AC, DC：Brushed DC
Function：Driver - Fully Integrated, Control and Power Stage
Output Configuration：Half Bridge (2)
Interface：PWM, Serial
Technology：Bi-CMOS
Step Resolution：-
Applications：General Purpose
Current - Output：3.5A
Voltage - Supply：10V ~ 27V
Voltage - Load：10V ~ 27V
Operating Temperature：-20°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：20-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Supplier Device Package：20-HSOP
Grade：-
Qualification：-

Download product information

TB6549FG(O,EL)

Overview

The TB6549FG is a full-bridge driver IC for DC motors utilizing an LDMOS structure for output transistors. It supports a power supply voltage range of 10 V to 30 V and delivers a maximum output current of 4.5 A. The device operates within a temperature range of -20 °C to 85 °C and features a ZIP-25 package. Control modes including clockwise, counter-clockwise, short brake, and stop are selectable via IN1 and IN2 inputs.

Feature Summary

Full-bridge driver architecture using LDMOS output transistors
Supports four operational modes: CW, CCW, short brake, and stop
High-efficiency drive capability through low ON-resistance MOS process
Integrated PWM drive system for precise motor control

Applications

Brushed DC motor control in industrial equipment
Motion control systems requiring high-current drive
Automotive actuator applications
General purpose bridge driver circuits

Procurement Notes

Verify the specific suffix configuration against official Toshiba documentation to ensure correct pinout and thermal characteristics. Confirm that the ZIP-25 flange mount package aligns with your PCB layout and heatsinking requirements. Cross-reference the part number with authorized distributors to avoid counterfeit components and ensure RoHS compliance status matches project specifications.

Selection Notes

Select this component when a robust full-bridge solution with high current capacity is required for brushed DC motors. The LDMOS technology offers reliability under high load conditions compared to standard bipolar drivers. Ensure adequate thermal management due to the power dissipation inherent in the ZIP-25 package. Consider the 30 V maximum supply limit when designing power stages.

Part Context

The TB6549FG belongs to Toshiba's series of Bi-CMOS integrated circuits designed for motor driving applications. It complements other models like the TB6549PG and TB6549HQ, which share similar functional architectures but differ in packaging and thermal performance. This family targets applications needing efficient, high-current motor control with simplified interface requirements.
