Product Detailed Parameters
- Description：IC MOTOR DRIVER 10V-27V 25HZIP
- Series：-
- Mfr：Toshiba Semiconductor and Storage
- Package：Tube
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushed DC
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (2)
- Interface：PWM, Serial
- Technology：Bi-CMOS
- Step Resolution：-
- Applications：General Purpose
- Current - Output：4.5A
- Voltage - Supply：10V ~ 27V
- Voltage - Load：10V ~ 27V
- Operating Temperature：-20°C ~ 85°C (TA)
- Mounting Type：Through Hole
- Package / Case：25-SSIP Formed Leads
- Supplier Device Package：25-HZIP
- Grade：-
- Qualification：-
Download product information
Overview

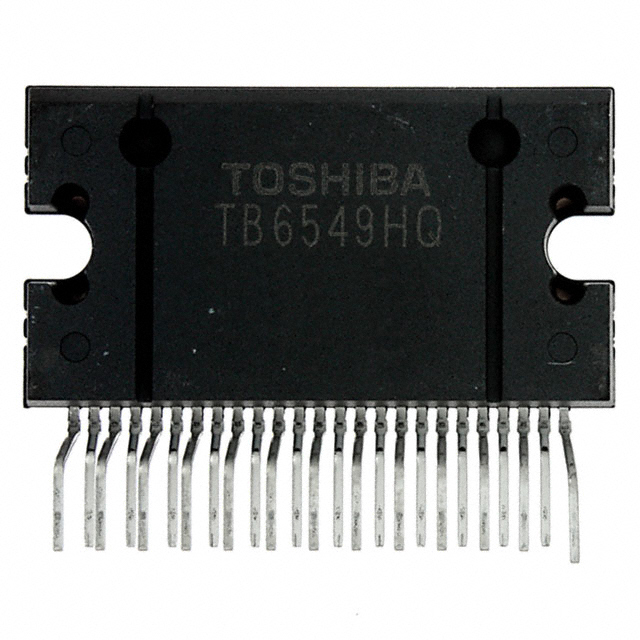

The TB6549HQ is a full-bridge driver IC for DC motors utilizing an LDMOS structure. It operates within a power supply voltage range of 10 V to 27 V, with a maximum rating of 30 V. The device supports a maximum output current of 4.5 A and functions across a temperature range of -20 °C to 85 °C. Packaged in a 25-pin HZIP flange mount format, it enables high-efficiency drive through low ON-resistance MOS processes and PWM systems.
Feature Summary
- Full-bridge driver architecture using LDMOS output transistors
- Supports CW, CCW, short brake, and stop modes via IN1/IN2 inputs
- High-efficiency drive capability through low ON-resistance MOS process
- Compatible with PWM drive systems
Applications
- DC motor control systems
- Motion control applications
- Industrial automation equipment
Procurement Notes
Verify the specific suffix (e.g., HQ) against official Toshiba documentation to confirm pinout and thermal characteristics. Ensure the operating environment remains within the specified -20 °C to 85 °C range. Confirm that the 25-pin HZIP package aligns with the target PCB layout and heat dissipation requirements before procurement.
Selection Notes
Select this component when a robust full-bridge driver for DC motors is required. The LDMOS structure offers high efficiency and reliability. Consider the 25-pin flange mount package for effective thermal management in high-current applications up to 4.5 A. Verify compatibility with the system's PWM frequency and control logic levels.
Part Context
Part of the TB6549FG/PG/HQ series from Toshiba Semiconductor and Storage. These Bi-CMOS integrated circuits are designed as silicon monolithic full-bridge drivers. The series provides options for different packaging and thermal performance while maintaining consistent core functionality for DC motor driving applications.
Replacement Considerations
Official substitutes include the TB6549FG and TB6549PG variants within the same series. Verify package compatibility and thermal specifications when substituting, as these may differ between FG, PG, and HQ versions.
