TB6561FG,8,EL

Overview

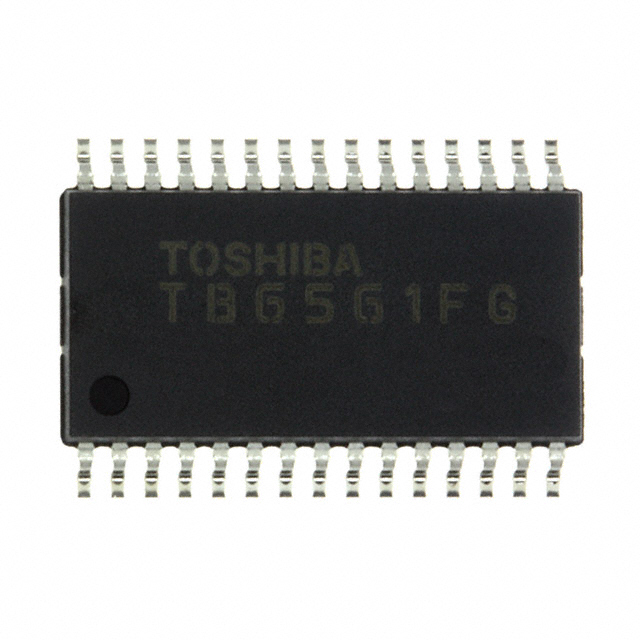

The TB6561FG,8,EL is a Bi-CMOS brush DC motor driver IC manufactured by Toshiba Semiconductor and Storage. It integrates control logic and power stages within a single package. The device supports a supply voltage range of 10V to 36V and delivers an output current of 1.5A. It utilizes PWM interface for operation and features four half-bridge outputs. The component operates reliably across a temperature range of -20°C to 85°C and is housed in a 30-SSOP surface-mount package.

Feature Summary

• Integrates full control and power stages for brushed DC motors
• Supports parallel and PWM input interfaces
• Features four half-bridge output configurations

Applications

• Brushed DC motor control systems
• General purpose motor driver applications

Procurement Notes

Verify the specific suffix EL indicates tape and reel packaging when sourcing components. Confirm the manufacturer designation as Toshiba Semiconductor and Storage to ensure authenticity. Check RoHS compliance status against current regulatory requirements before finalizing procurement decisions.

Selection Notes

Select this component for designs requiring integrated brushed DC motor control with a 1.5A output capability. Ensure the operating voltage remains within the 10V to 36V specification. Verify that the 30-SSOP package dimensions fit the target PCB layout constraints.

Part Context

This part belongs to the TB6561 series of motor drivers from Toshiba. It is designed specifically for driving brushed DC motors using Bi-CMOS technology. The device consolidates necessary drive functions into a compact form factor suitable for space-constrained electronic applications.

Replacement Considerations

TB6569FTG,8,EL
