TB67S215FTAG,EL

Overview

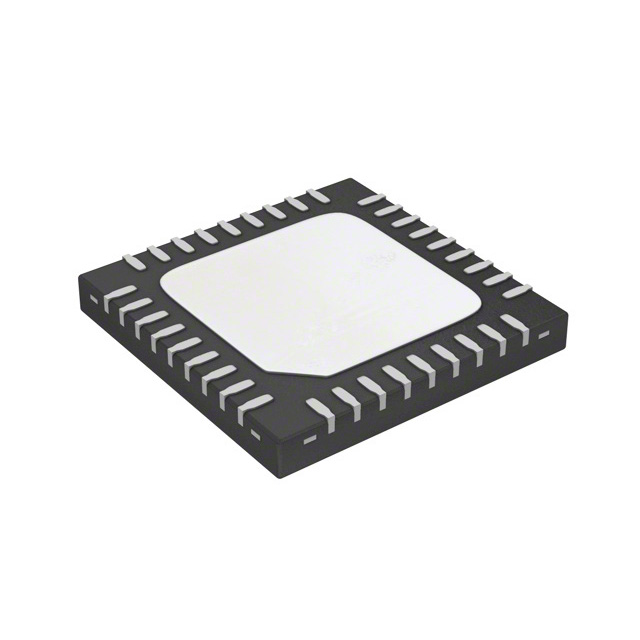

The TB67S215FTAG,EL is a bipolar stepper motor driver IC manufactured by Toshiba Semiconductor and Storage. It integrates control logic and power MOSFETs in a single package. The device supports step resolutions of 1, 1/2, and 1/4. It operates with a supply voltage range of 4.75V to 5.25V and handles load voltages from 10V to 35V. The output current capability is rated at 2A. The component utilizes a 36-WQFN (6x6) surface-mount package with exposed pads for thermal management.

Feature Summary

• Integrates full control logic and power stage within a compact footprint
• Supports multiple step resolutions including full, half, and quarter steps
• Utilizes power MOSFET technology for efficient switching performance

Applications

• Bipolar stepper motor control systems
• General purpose motion control applications
• Compact automation devices requiring integrated driver solutions

Procurement Notes

Verify the specific suffix EL against official Toshiba documentation to confirm tape and reel packaging specifications. Ensure that the ordering information matches the exact part number designation to avoid discrepancies in delivery format or manufacturing lot characteristics. Cross-reference the manufacturer's latest datasheet for any updates on recommended soldering profiles or storage conditions prior to procurement.

Selection Notes

Select this component when a fully integrated bipolar stepper driver is required with a 2A output capacity. The 36-WQFN package is suitable for space-constrained designs. Verify that the application load voltage falls within the 10V to 35V range and that the logic supply aligns with the specified 4.75V to 5.25V window. Consider thermal dissipation requirements given the power MOSFET architecture and operating temperature limits.

Part Context

This part belongs to the TB67S215 series of stepping motor driver ICs. It is designed as a complete solution for driving bipolar stepper motors without external discrete components. The series emphasizes integration and compactness, utilizing advanced power MOSFET technology to reduce board space while maintaining reliable motor control capabilities for various industrial and consumer applications.

Replacement Considerations

Consult official Toshiba substitution guides for verified alternatives. Generic cross-references may not match the specific electrical characteristics or pinout configuration of this integrated driver.
