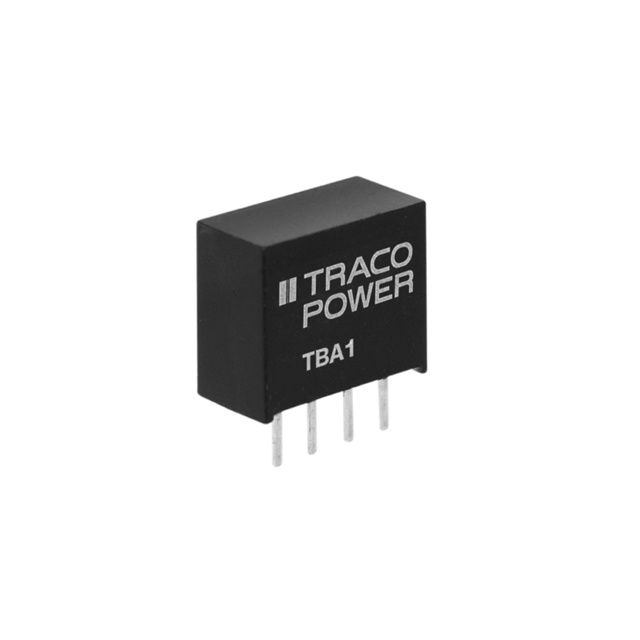

TBA 1-0310

TBA 1-0310 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 3.3V 858MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TBA 1-0310

• Description：DC DC CONVERTER 3.3V 858MW
• Series：TBA 1 (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：2.97V
• Voltage - Input (Max)：3.63V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：260mA
• Power (Watts)：858 mW
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：73%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TBA 1-0310
