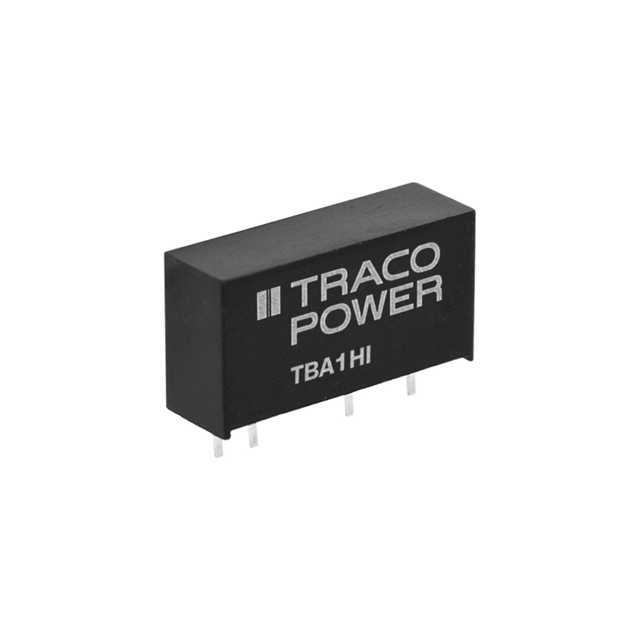

TBA 1-0512HI

TBA 1-0512HI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 12V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TBA 1-0512HI

• Description：DC DC CONVERTER 12V 1W
• Series：TBA 1HI (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：84mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TBA 1-0512HI
