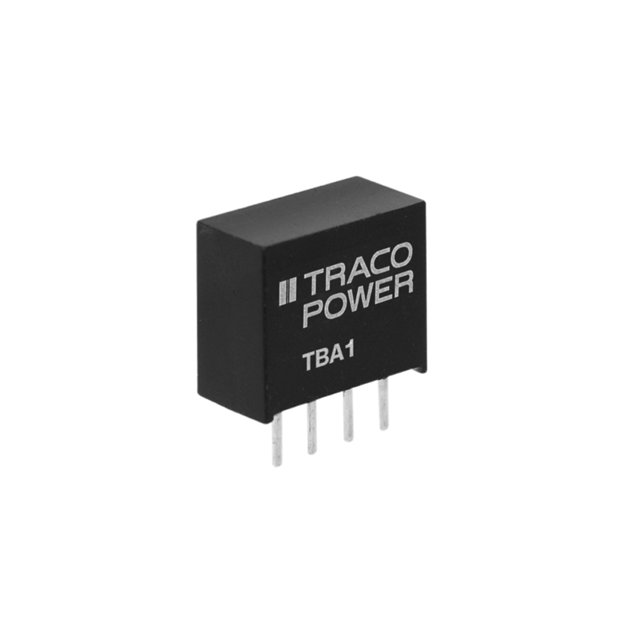

TBA 1-1213

TBA 1-1213 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 15V 975MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TBA 1-1213

• Description：DC DC CONVERTER 15V 975MW
• Series：TBA 1 (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：65mA
• Power (Watts)：975 mW
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TBA 1-1213
