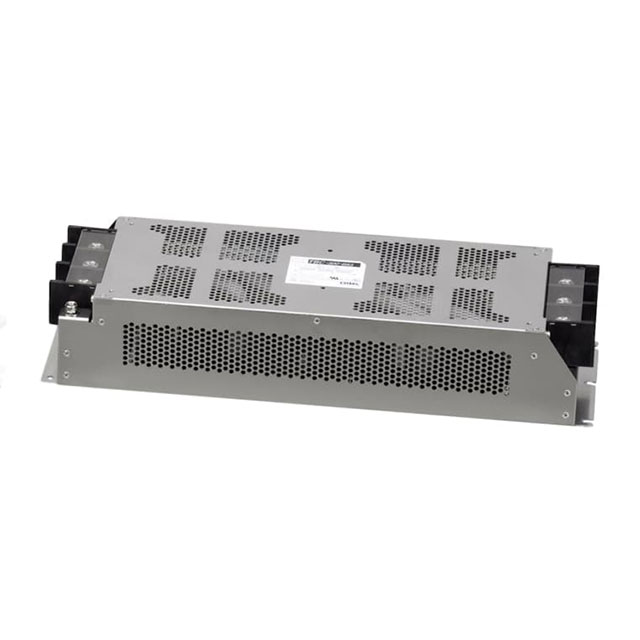

TBC-50-223 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Cosel USA, Inc.. Its product description is LINE FILTER 500VAC 50A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for TBC-50-223
- Description：LINE FILTER 500VAC 50A CHASS MNT
- Series：TBC
- Mfr：Cosel USA, Inc.
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：500V
- Current：50 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, VDE
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for TBC-50-223
Power Line Filter Modules Overview
The TBC-50-223 is a three-phase EMC/EMI line filter manufactured by Cosel USA, Inc. It supports a rated voltage of 500VAC and a continuous current capacity of 50A at frequencies of 50/60Hz. The unit utilizes a two-stage filtering architecture to suppress electromagnetic interference in power lines. It employs terminal block connections for electrical interfacing and is designed for chassis mounting applications.
Power Line Filter Modules Feature Summary
- Two-stage EMI/EMC filtering architecture
- Three-phase Wye configuration support
- Terminal block connection interface
Power Line Filter Modules Applications
- Industrial power distribution systems
- Electromagnetic compatibility compliance testing setups
- General-purpose AC power line noise suppression
Power Line Filter Modules Procurement Notes
Verify the specific suffix code against official Cosel documentation to confirm exact attenuation characteristics and terminal type. Ensure chassis mounting provisions align with installation requirements. Confirm RoHS compliance status through the manufacturer's latest datasheet before procurement.
Power Line Filter Modules Selection Notes
Select this model when three-phase 500VAC systems require 50A filtering capacity. The two-stage design offers enhanced noise reduction compared to single-stage alternatives. Verify that the terminal block interface matches existing wiring infrastructure and that chassis mounting space is available.
Power Line Filter Modules Part Context
This component belongs to the TBC series of power line filters from Cosel USA, Inc. The series provides various current ratings and voltage configurations for industrial EMC applications. The TBC-50-223 specifically addresses mid-range current requirements in three-phase environments.
Power Line Filter Modules Replacement Considerations
Consult official Cosel substitution guides for verified equivalents. Cross-reference voltage, current, and phase requirements with alternative part numbers such as those in the TAC or SNR series only if specifications match exactly.
