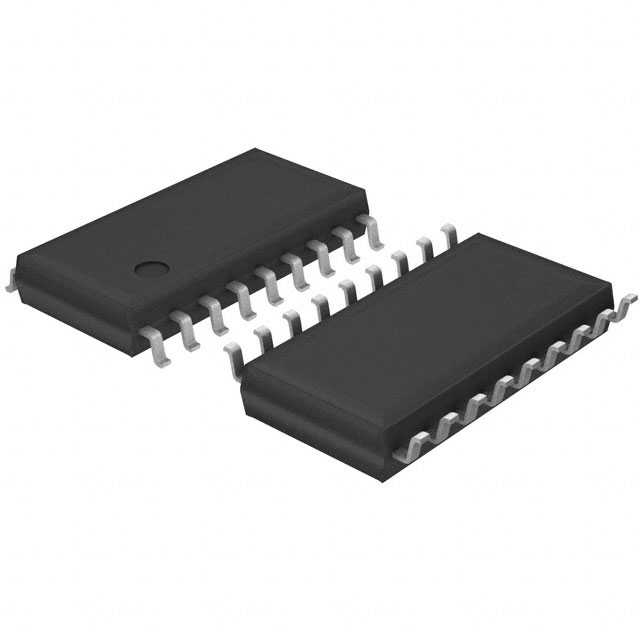

TBD62084AFG,EL

$1.73

Description：IC PWR SWITCH N-CHAN 1:1 18SOP
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9516268b935c Category: Power Distribution Switches, Load Drivers Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH N-CHAN 1:1 18SOP
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Type：-
Number of Outputs：-
Ratio - Input:Output：-
Output Configuration：-
Output Type：-
Interface：-
Voltage - Load：-
Voltage - Supply (Vcc/Vdd)：-
Current - Output (Max)：-
Rds On (Typ)：-
Input Type：-
Features：-
Fault Protection：-
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：18-SOP
Package / Case：18-SOIC (0.276", 7.00mm Width)
Grade：-
Qualification：-

Download product information

TBD62084AFG,EL

Overview

The TBD62084AFG,EL is a low-side gate driver featuring an eight-channel DMOS FET transistor array. It operates within a supply voltage range of 7 V to 25 V and supports output currents up to 500 mA with a maximum output voltage of 50 V. The device utilizes inverting logic configuration and is housed in a surface-mount SOP-18 package. It functions effectively across an industrial temperature range from -40°C to +85°C.

Feature Summary

Integrates eight independent low-side sink-output drivers utilizing Double-Diffused MOSFET technology for high efficiency and reduced power loss.
Accepts high current density per device area without requiring base current, maintaining low on-resistance characteristics.
Provides inverting logic control for direct interface with standard digital logic signals.

Applications

Driving IGBT modules in motor control applications
Controlling solenoid valves in industrial automation systems
Actuating relays and lamps in automotive electronics

Procurement Notes

Verify the specific suffix 'FG' against the manufacturer's official datasheet to confirm pinout compatibility and electrical specifications. Ensure the selected component matches the required SOP-18 surface mount package dimensions for PCB layout integration. Confirm RoHS3 compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this component when an eight-channel low-side driver with 50V/0.5A capability is required. The inverting configuration suits applications where active-low control signals are standard. Consider thermal dissipation requirements given the 1.47 W power dissipation rating in the SOP-18 package. Compare against the TBD62083 series if non-inverting logic or different voltage thresholds are necessary.

Part Context

This part belongs to the Toshiba TBD62084 series of DMOS FET transistor arrays. The series offers multiple package options including through-hole PDIP and various surface-mount formats like SSOP and SOP. The AFG variant specifically denotes the SOP-18 surface mount configuration designed for automated assembly processes.
