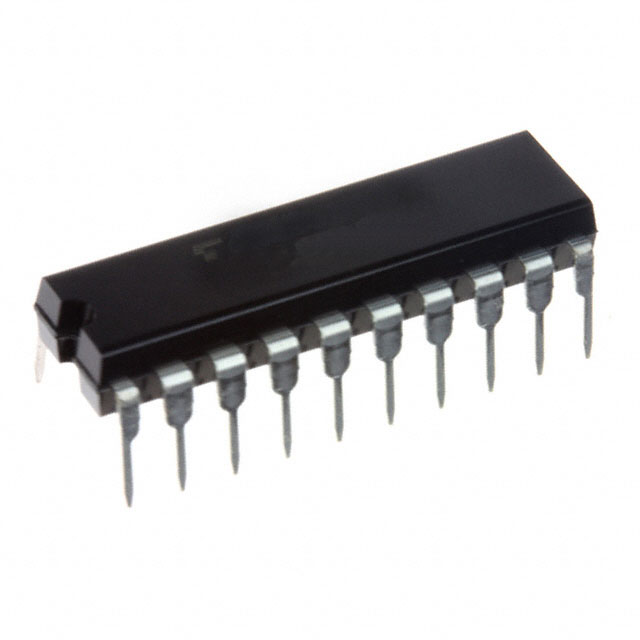

TBD62089APG
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC PWR DRIVER N-CHAN 1:1 20DIP
- Series：-
- Mfr：Toshiba Semiconductor and Storage
- Package：Tray
- Switch Type：-
- Number of Outputs：-
- Ratio - Input:Output：-
- Output Configuration：-
- Output Type：-
- Interface：-
- Voltage - Load：-
- Voltage - Supply (Vcc/Vdd)：-
- Current - Output (Max)：-
- Rds On (Typ)：-
- Input Type：-
- Features：-
- Fault Protection：-
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Through Hole
- Supplier Device Package：20-DIP
- Package / Case：20-DIP (0.300", 7.62mm)
- Grade：-
- Qualification：-
Download product information
Overview
The TBD62089APG is an 8-channel sink-type DMOS transistor array manufactured by Toshiba Semiconductor and Storage. It integrates D-type flip-flops for each channel, enabling data storage capabilities within the driver circuitry. The device features a DIP-20 through-hole package and supports a supply voltage range of 3 V to 5.5 V. Each channel provides a maximum output current of 500 mA with a maximum output voltage rating of 50 V. The component operates within a temperature range of -40°C to +85°C and includes non-inverting logic configuration.
Feature Summary
- Integrates eight independent sink-output drivers utilizing Double-Diffused MOSFET technology for high efficiency and low on-resistance.
- Incorporates D-type flip-flop circuits for each channel to store input data and maintain output states without continuous signal input.
- Features a non-inverting logic configuration that simplifies interface design with standard digital control signals.
Applications
- Driving stepper motors in industrial automation equipment
- Controlling solenoid valves in fluid management systems
- Actuating relay coils in control panels
Procurement Notes
Verify the specific suffix designation against official Toshiba documentation to confirm package type and compliance status. Ensure the procurement source provides valid RoHS certification details as required for regulatory compliance. Confirm that the DIP-20 through-hole package matches the target PCB footprint requirements before finalizing orders.
Selection Notes
Select this component when integrated data storage per channel is required to reduce microcontroller pin count. The DMOS architecture offers superior power dissipation compared to bipolar alternatives. Verify that the 500 mA per channel current rating meets the load requirements and that the 5 V logic compatibility aligns with the system's control voltage levels.
Part Context
This part belongs to the TBD6208 series of DMOS transistor arrays designed for high-current switching applications. Unlike basic driver arrays, this variant specifically includes internal flip-flop latches, distinguishing it from non-latching counterparts like the TBD62084APG. It serves as a bridge between low-power digital logic and higher-power analog loads.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Toshiba's official cross-reference guides for potential equivalents.
