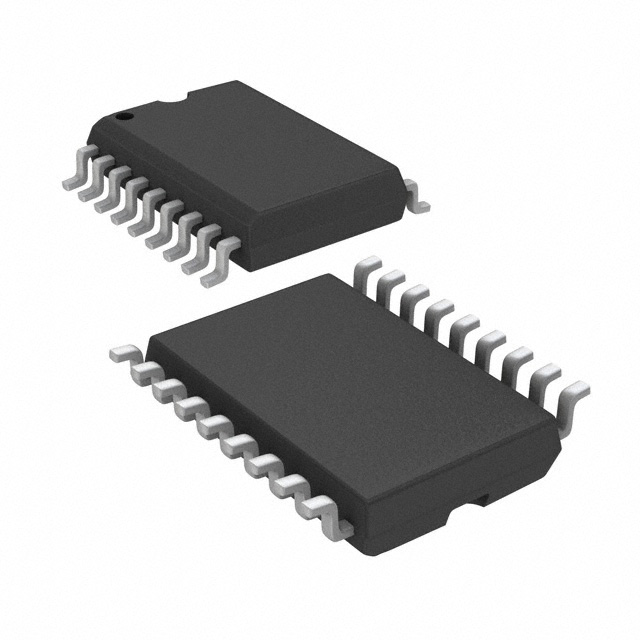

TBD62183AFWG,EL

$1.55

Description：IC PWR DRIVER N-CHAN 1:1 18SOP
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9f84a14eceb2 Category: Power Distribution Switches, Load Drivers Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR DRIVER N-CHAN 1:1 18SOP
Series：-
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Type：General Purpose
Number of Outputs：8
Ratio - Input:Output：1:01
Output Configuration：Low Side
Output Type：N-Channel
Interface：-
Voltage - Load：50V (Max)
Voltage - Supply (Vcc/Vdd)：2.8V ~ 25V
Current - Output (Max)：50mA
Rds On (Typ)：-
Input Type：Inverting
Features：-
Fault Protection：-
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：18-SOP
Package / Case：18-SOIC (0.295", 7.50mm Width)
Grade：-
Qualification：-

Download product information

TBD62183AFWG,EL

Overview

The Toshiba TBD62183AFWG,EL is an eight-channel low-side DMOS transistor array designed for gate driving applications. It operates with a supply voltage range of 4.5 V to 5.5 V and supports load voltages up to 50 V. The device delivers a maximum output current of 500 mA per channel and features inverting logic configuration compatible with CMOS inputs. Key electrical parameters include a maximum power dissipation of 1.34 W, operating temperatures from -40°C to +85°C, and delay times of 0.2 µs (on) and 0.4 µs (off). Packaged in PSOP-18 surface-mount format.

Feature Summary

Integrates eight independent low-side DMOS outputs for simultaneous multi-channel control
Provides high sink current capability suitable for direct gate drive of power MOSFETs
Features inverting logic interface ensuring compatibility with standard CMOS microcontrollers

Applications

Gate driver circuits for automotive brushless DC motors
Power switching arrays for industrial motor control systems
High-current load driving in consumer electronics appliances

Procurement Notes

Verify the specific suffix 'WG' against the manufacturer's latest datasheet to confirm package dimensions and pinout compatibility. Ensure that the 5.5 V maximum logic supply rating aligns with the target system's voltage levels. Confirm RoHS compliance status through official documentation prior to finalizing component selection for production.

Selection Notes

Select this component when eight synchronized low-side switches are required with moderate current capacity. Compare against the TBD62183AFNG variant if SSOP-18 packaging is preferred over PSOP-18. Consider the TBD62381AFWG,EL only if higher current ratings or different thermal characteristics are necessary for the specific application load requirements.

Part Context

This part belongs to Toshiba's TBD62xxx series of DMOS transistor arrays, which are widely utilized in power management and motor control IC portfolios. The series offers integrated solutions for driving inductive loads, reducing board space compared to discrete transistor arrangements. The AF designation typically indicates automotive-grade qualification within the broader product family lineup.
