TBD62502AFG,EL

Power Distribution Switches, Load Drivers Overview

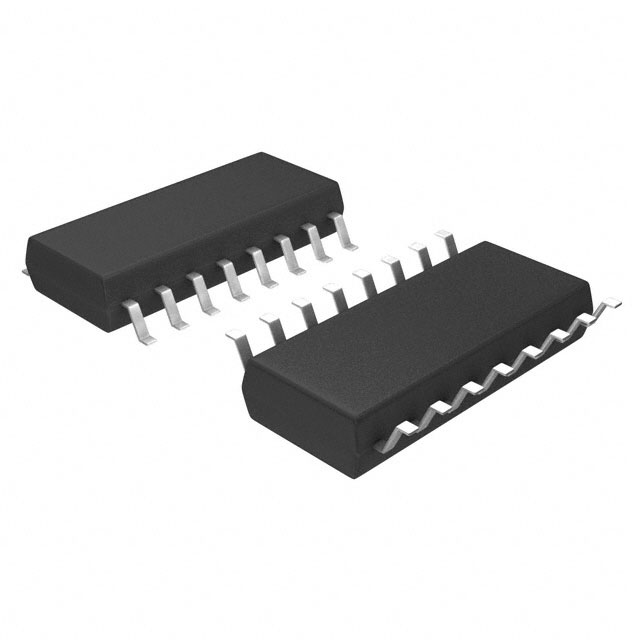

The Toshiba TBD62502AFG,EL is a monolithic integrated circuit designed for driving inductive loads such as relays and solenoids. It integrates high-voltage NPN Darlington transistors with built-in flyback diodes to protect against voltage spikes generated during switching operations. The device features a compact surface-mount package suitable for space-constrained applications. Key electrical characteristics include a collector-emitter saturation voltage of approximately 1.3V at specified currents and a continuous collector current rating per channel. The input logic is compatible with standard TTL and CMOS levels, allowing direct interfacing with microcontrollers or logic gates without additional level-shifting components.

Power Distribution Switches, Load Drivers Feature Summary

• Integrated flyback diodes eliminate the need for external protection components
• Direct interface capability with standard digital logic families
• High voltage tolerance for driving inductive load types

Power Distribution Switches, Load Drivers Applications

• Industrial control systems requiring relay actuation
• Automotive electronic modules for solenoid control
• Home appliance driver circuits for motor or valve operation

Power Distribution Switches, Load Drivers Procurement Notes

Verify the exact suffix EL indicates the specific tape and reel packaging configuration required for automated assembly processes. Confirm that the operating temperature range meets the environmental specifications of the final product design. Ensure compatibility with the intended PCB footprint and soldering profile standards before placing orders.

Power Distribution Switches, Load Drivers Selection Notes

Evaluate the total power dissipation capabilities relative to the thermal resistance of the chosen package type. Consider the number of channels required versus available pins to optimize board space. Assess the input current requirements to ensure the driving source can supply sufficient current without exceeding its own limits.

Power Distribution Switches, Load Drivers Part Context

This component belongs to Toshiba's series of high-voltage Darlington array ICs. These devices are engineered for robustness in noisy environments common in industrial and automotive settings. The monolithic construction ensures consistent performance across all channels within the single package.

Power Distribution Switches, Load Drivers Replacement Considerations

Check for pin-compatible alternatives from other manufacturers offering similar Darlington configurations. Verify that substitute parts maintain equivalent voltage ratings and current handling capabilities. Ensure any replacement includes integrated flyback diodes if external components cannot be added.
