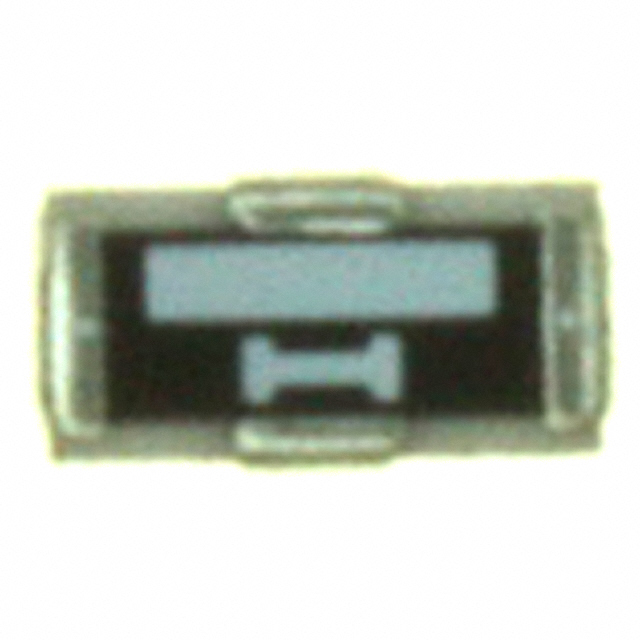

TBF-1608-245-R1N

$0.30

Description：FILTER THIN FILM 2.45GHZ SMD
Series：TBF
Mfr：Susumu
Package：Tape & Reel (TR)

SKU:8231662fd4e9 Category: EMI/RFI Filters (LC, RC Networks) Brand: Susumu

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER THIN FILM 2.45GHZ SMD
Series：TBF
Mfr：Susumu
Package：Tape & Reel (TR)
Type：Band Pass
Filter Order：-
Technology：Thin Film
Number of Channels：1
Center / Cutoff Frequency：2.45GHz (Center)
Attenuation Value：20dB @ 1.71 ~ 1.91GHz, 30dB @ 4.8 ~ 5GHz
Resistance - Channel (Ohms)：-
Values：-
ESD Protection：No
Operating Temperature：-40°C ~ 85°C
Applications：Bluetooth, GPS, WLAN
Voltage - Rated：-
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric), 4 PC Pad
Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
Height：0.016" (0.41mm)
Current：-
Grade：-
Qualification：-

Download product information

TBF-1608-245-R1N

Overview

The TBF-1608-245-R1N is a thin film EMI/RFI filter manufactured by Susumu, designed for surface-mount technology in a 0603 (1608 metric) package. It operates as a band-pass filter centered at 2.45 GHz. The component supports an operating temperature range of -40°C to 85°C and utilizes SMD/SMT termination types.
