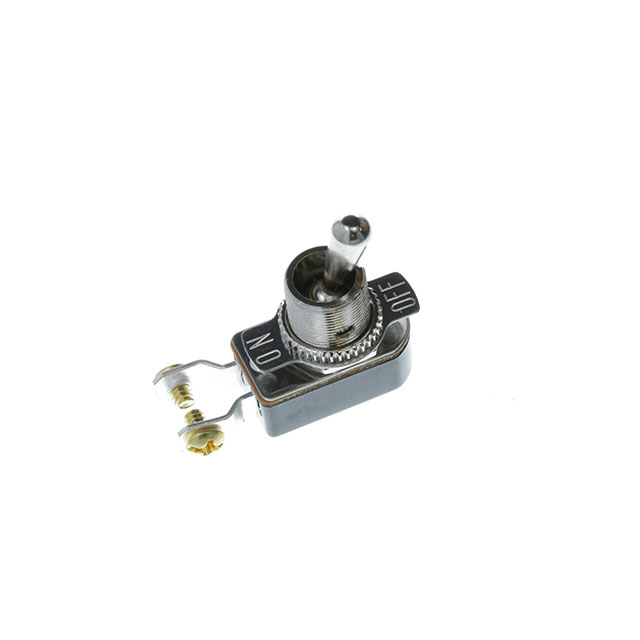

TC-1A-AC-6-2

TC-1A-AC-6-2 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is VAC COMPACT, SPST OFF-ON, SCREW. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for TC-1A-AC-6-2

• Description：VAC COMPACT, SPST OFF-ON, SCREW
• Series：TC
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：6A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Standard Round
• Actuator Length：11.10mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Screw Terminal
• Panel Cutout Dimensions：Circular - 12.20mm Dia
• Bushing Thread：M12 x 0.75
• Ingress Protection：-
• Features：-
• Operating Temperature：-20°C ~ 85°C

Toggle Switches datasheet and documents for TC-1A-AC-6-2
