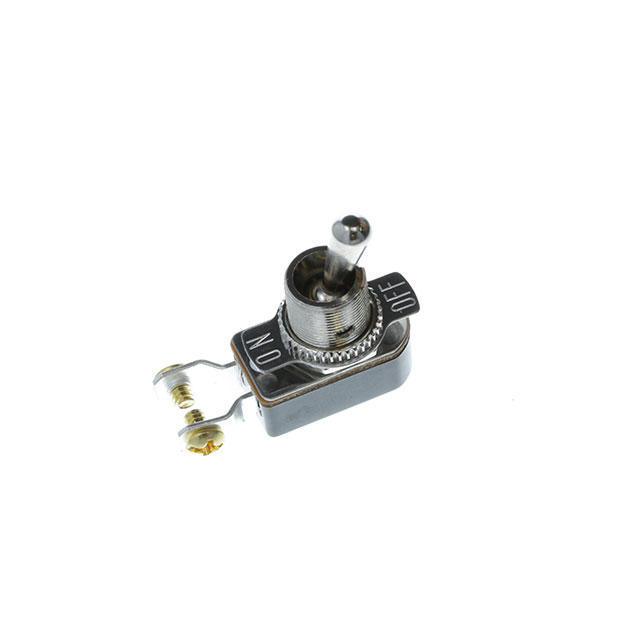

TC-1A-DC-6-2

TC-1A-DC-6-2 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Switch Components. Its product description is SWITCH TOGGLE SPST 6A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for TC-1A-DC-6-2

• Description：SWITCH TOGGLE SPST 6A 125V
• Series：TC
• Mfr：Switch Components
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：6A (AC), 6A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：12 V
• Actuator Type：Standard Round
• Actuator Length：11.10mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Screw Terminal
• Panel Cutout Dimensions：Circular - 12.20mm Dia
• Bushing Thread：M12 x 0.75
• Ingress Protection：-
• Features：-
• Operating Temperature：-20°C ~ 85°C
