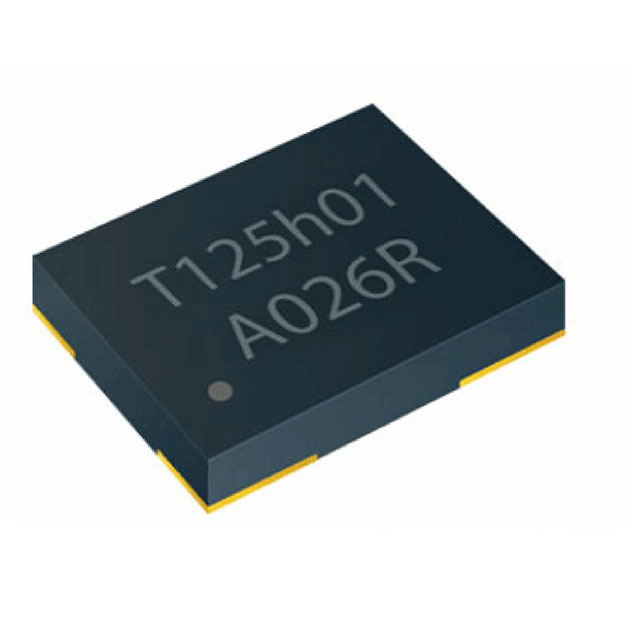

TC-57.849MBD-T

$0.51

Description：MEMS OSC XO 57.8490MHZ CMOS SMD
Series：TC
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)

SKU:b610a8e6b033 Category: Oscillators Brand: TXC CORPORATION

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TC-57.849MBD-T is listed in the Oscillators range at ChipApex. The manufacturer field lists TXC CORPORATION. Its product description is MEMS OSC XO 57.8490MHZ CMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for TC-57.849MBD-T

Description：MEMS OSC XO 57.8490MHZ CMOS SMD
Series：TC
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
Base Resonator：MEMS
Type：XO (Standard)
Frequency：57.849 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：3.3V
Frequency Stability：±25ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：25mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.031" (0.80mm)
Supplier Device Package：-

Oscillators datasheet and documents for TC-57.849MBD-T

TC-57.849MBD-T

Oscillators Overview

The TC-57.849MBD-T is a MEMS oscillator manufactured by TXC Corporation, operating at a frequency of 57.849 MHz. It utilizes CMOS output format and requires a supply voltage of 3.3 V. The device features a frequency stability of ±25 ppm and functions within an operating temperature range of -40°C to +85°C. It is housed in a compact 3.2 mm x 2.5 mm surface-mount package with a maximum seated height of 0.80 mm.

Oscillators Feature Summary

Utilizes silicon MEMS technology for robust clock generation
Provides standard CMOS output signal compatibility
Designed for surface-mount assembly processes

Oscillators Applications

General-purpose digital system clocking
Embedded controller timing references
Industrial control unit synchronization

Oscillators Procurement Notes

Verify the specific suffix 'BD' against official datasheets to confirm the 3.3V supply requirement and ±25 ppm stability specifications. Ensure the selected variant matches the required -40°C to +85°C industrial temperature rating. Cross-reference the manufacturer part number directly with the original equipment manufacturer documentation to avoid substitution errors due to similar naming conventions.

Oscillators Selection Notes

Select this component when a stable 57.849 MHz reference is required for CMOS-compatible logic circuits. The choice depends on the need for a small 3.2mm x 2.5mm footprint and operation within the specified industrial temperature range. Confirm that the 3.3V power supply constraint aligns with the target system design before finalizing the selection.

Oscillators Part Context

This component belongs to the TXC MEMS oscillator family, which replaces traditional quartz crystals with silicon-based solutions. These devices offer improved shock resistance and lower profile dimensions compared to conventional ceramic packages. The series supports various frequencies and voltage levels for diverse electronic applications.
