TC28B0642

Overview

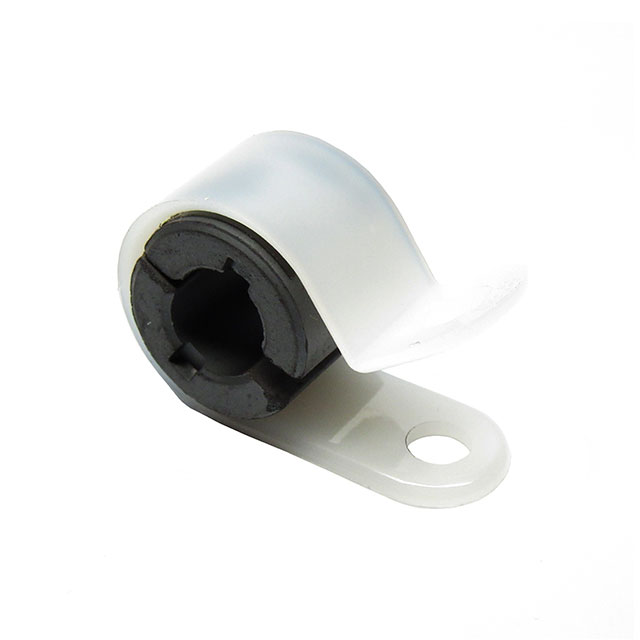

The TC28B0642 is a split core ferrite clamp manufactured by Leader Tech Inc. Designed for round cables, it features a circular shape with an inner diameter of 8.1 mm and an outer diameter of 19.9 mm. The component has an external length of 33.9 mm and an external width of 16 mm. It utilizes screw mounting for secure installation. The product belongs to the ferrites sub-category and is supplied in reel or cut tape packaging formats.

Feature Summary

• Split core design allows for easy installation around existing cables without disconnection
• Round shape accommodates standard cylindrical cable geometries
• Screw mounting ensures stable attachment to chassis or panels

Applications

• EMI suppression on single round cables
• Chassis mount noise filtering applications
• Cable harness interference reduction

Procurement Notes

Verify the specific package type required, as the TC28B0642 is available in both reel and cut tape configurations. Confirm that the screw mounting interface aligns with your assembly requirements. Ensure the 8.1 mm inner diameter is compatible with the target cable size before ordering. Cross-reference the manufacturer part number to avoid confusion with similar round ferrite clamps.

Selection Notes

Select this model when a non-intrusive solution for round cables is needed. The split core architecture facilitates retrofitting into existing systems. Consider the physical dimensions, specifically the 19.9 mm outer diameter, to ensure adequate clearance within the enclosure. The screw mount option provides a more permanent solution compared to snap-fit alternatives.

Part Context

This component is part of Leader Tech's FerriShield line of ferrite cores. It falls under the broader category of cable ferrites used for electromagnetic interference mitigation. The product is distinct from flat cable or sleeve-type ferrites due to its specific round geometry and split construction.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models based on matching inner diameter, impedance characteristics, and mounting style.
