Product Detailed Parameters
- Description：CMC 100MA 2LN 50 OHM SMD ESD
- Series：TCE
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：2.5Ohm
- Voltage Rating - DC：10V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：TVS Diode ESD Protection
- Mounting Type：Surface Mount
- Size / Dimension：0.033" L x 0.026" W (0.85mm x 0.65mm)
- Height (Max)：0.018" (0.45mm)
- Package / Case：0302 (0806 Metric), 6 Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：50 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

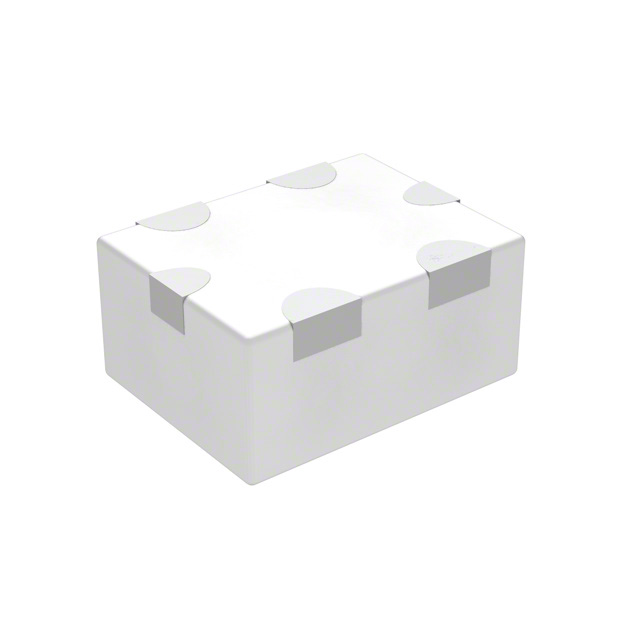

The TCE0806S-500-2P-T200 is a surface-mount common mode choke filter designed for signal line protection. It features two lines with an impedance of 50 Ohms at 100 MHz and a maximum DC resistance of 2.5 Ohms. The component supports a maximum current rating of 100 mA and operates within a voltage rating of 10V DC. Packaged in the EIA 0806 footprint, it provides electromagnetic interference suppression for high-speed data interfaces.
Feature Summary
- Dual-line configuration for differential signal filtering
- Compact surface-mount design suitable for space-constrained PCBs
- High impedance characteristic for effective noise attenuation
Applications
- USB interface protection
- HDMI signal line filtering
- Ethernet port noise suppression
Procurement Notes
Verify the specific suffix T200 against the manufacturer's latest documentation to confirm tape and reel specifications. Confirm RoHS compliance status as indicated in official datasheets. Check part status as some sources indicate this specific variant may be obsolete or discontinued; validate availability through authorized distributors before finalizing procurement plans.
Selection Notes
Select this component when designing circuits requiring low capacitance and high-frequency noise suppression for differential pairs. Ensure the operating current does not exceed 100 mA to prevent saturation. Verify that the 0806 package dimensions align with the target PCB layout constraints and soldering thermal profiles.
Part Context
This component belongs to TDK's TCE series of common mode chokes, which are engineered for protecting high-speed digital signals from electromagnetic interference. The series offers various impedance values and current ratings tailored for different interface standards, providing reliable performance in consumer electronics and industrial applications.
Replacement Considerations
Consult TDK's official cross-reference tools for verified substitutes. Consider models with identical 50 Ohm impedance and 0806 footprint if direct replacement is required. Ensure any alternative maintains the same current handling capability and DC resistance limits.
