Product Detailed Parameters
- Description：CMC 1.186MH 2LN TH
- Series：-
- Mfr：Traco Power
- Package：Tube
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：500V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.630" L x 0.630" W (16.00mm x 16.00mm)
- Height (Max)：0.591" (15.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：1.186 mH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

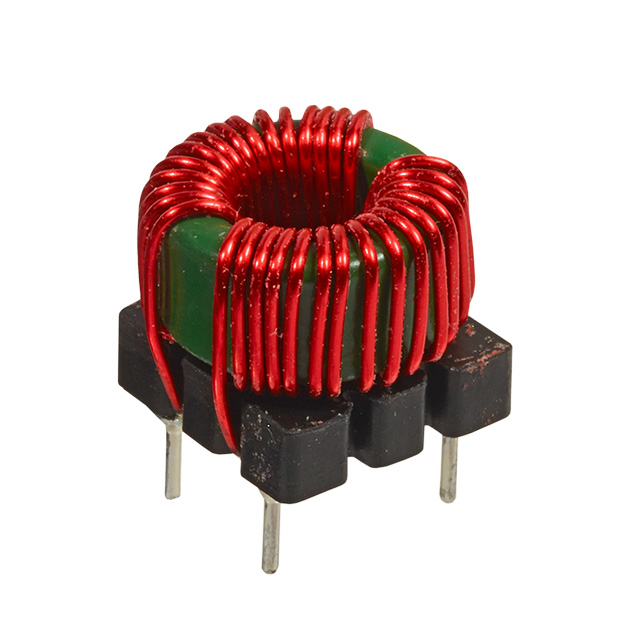

The TCK-064 is a through-hole common mode filter choke manufactured by TRACO Power. It features an inductance of 1.186 mH with a tolerance of ±35% at 100 kHz and 100 mV. The component supports a maximum DC current of 5.8 A and has a maximum DC resistance of 21.56 mOhms. It operates within a temperature range of -40°C to +105°C. Physical dimensions are 16 mm in length, 16 mm in width, and 15 mm in height.
Feature Summary
- Designed specifically for use with TRACO isolated DC-DC converters
- Provides common mode noise filtering via dual windings
- Constructed as an unshielded wirewound component
Applications
- Integration with TRACO isolated DC-DC converter modules
- Electromagnetic compatibility (EMC) filtering in power supply circuits
- Common mode interference suppression in electronic equipment
Procurement Notes
Verify the specific datasheet version when sourcing, as technical parameters may be subject to revision. Confirm that the through-hole mounting style and physical footprint match the target PCB layout requirements. Ensure the operating temperature range meets the environmental conditions of the final assembly. Cross-reference the manufacturer part number to avoid confusion with similar series components.
Selection Notes
Select this component when interfacing with TRACO isolated DC-DC converters requiring common mode chokes. The 5.8 A current rating suits high-power applications. Verify that the unshielded design does not interfere with nearby sensitive components. Consider the 16x16x15 mm package size during mechanical layout planning. Ensure the 105°C maximum operating temperature aligns with system thermal constraints.
Part Context
The TCK-064 belongs to the TCK series of filter components produced by TRACO Power. This series includes various inductors and chokes designed to support the company's power conversion products. The component serves as a passive filtering element to enhance signal integrity and reduce electromagnetic interference in power delivery networks.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TRACO Power directly for approved alternatives or equivalent specifications.
