Product Detailed Parameters
- Description：CMC 160UH 2LN TH
- Series：-
- Mfr：Traco Power
- Package：Bag
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：6.75mOhm
- Voltage Rating - DC：500V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.433" L x 0.433" W (11.00mm x 11.00mm)
- Height (Max)：0.358" (9.10mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：160 µH @ 100 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

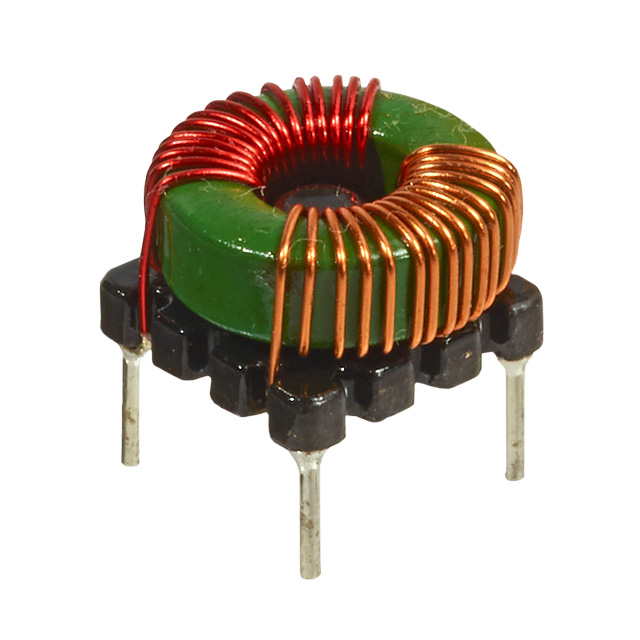

The TCK-096 is a two-line common mode choke manufactured by Traco Power, designed for through-hole mounting. It features an inductance of 160 µH measured at 100 kHz and supports a maximum DC current rating of 7.84 A. The component has a maximum DC resistance of 6.75 mΩ and operates within a temperature range of -40°C to +105°C. Its physical dimensions are 11 mm x 11 mm x 9.1 mm, with a voltage rating of 500 V DC.
Feature Summary
- Provides common mode noise suppression for two-line circuits
- Designed for reliable operation in harsh industrial environments
- Supports high current handling capabilities
Applications
- Industrial process systems
- Machine tools
- Power supply input filtering
Procurement Notes
Verify the specific datasheet version when sourcing, as manufacturer documentation may be updated. Confirm that the through-hole package style matches your PCB layout requirements. Ensure the operating temperature range aligns with your system's thermal conditions. Cross-reference the inductance tolerance specifications with your circuit design constraints before finalizing procurement decisions.
Selection Notes
Select this component when designing circuits requiring robust common mode noise attenuation for two-line configurations. Consider the 7.84 A current rating and low DC resistance for efficient power transmission. Verify compatibility with through-hole assembly processes and ensure the 500 V DC voltage rating meets your system's insulation requirements.
Part Context
Traco Power specializes in high-reliability DC/DC converters and power components for industrial applications. The TCK series focuses on electromagnetic interference suppression, complementing their power modules like the TPM and TSP series. These chokes support the company's commitment to EMC compliance and rugged performance in demanding electronic equipment.
Replacement Considerations
No publicly confirmed substitute part numbers are available in the provided documentation. Consult Traco Power directly for potential alternatives or equivalent components meeting similar electrical specifications.
