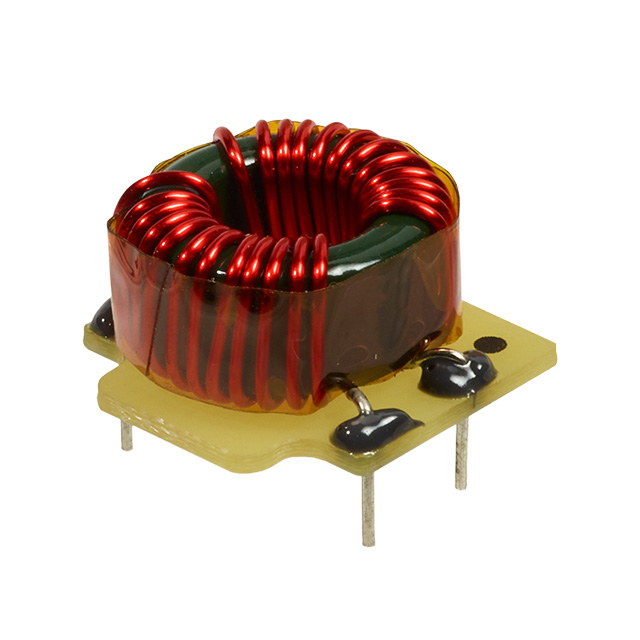

TCK-113

$6.04

Description：CMC 806UH 5.7A 2LN TH
Series：-
Mfr：Traco Power
Package：Tube

SKU:f4d308c2c4b3 Category: Common Mode Chokes Brand: Traco Power

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 806UH 5.7A 2LN TH
Series：-
Mfr：Traco Power
Package：Tube
Filter Type：-
Number of Lines：2
Current Rating (Max)：5.7A
DC Resistance (DCR) (Max)：25mOhm
Voltage Rating - DC：500V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：-
Height (Max)：0.492" (12.50mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：806 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

TCK-113

Overview

The TCK-113 is a common mode choke from the Traco Power TCK series, designed for use with isolated DC-DC converters. It features an inductance of 806 µH at 100 kHz and 100 mV, with a maximum DC resistance of 25 mΩ. The component supports a maximum rated current of 5.7 A and a maximum voltage of 500 VDC. Physical dimensions are 16.6 x 16.4 x 12.5 mm, and it operates within a temperature range of -40°C to 105°C.

Feature Summary

Provides electromagnetic interference filtering for DC/DC converter circuits
Reinforced isolation capability suitable for demanding industrial environments
Through-hole mounting design for reliable PCB integration

Applications

EMC filtering for Traco isolated DC-DC converters
Industrial control equipment power stages
Transportation system electronics
Measurement equipment power supplies

Procurement Notes

Verify the specific part number TCK-113 against official Traco Power documentation to confirm inductance tolerance (±35%) and pin configuration. Ensure the selected component meets the required 500 VDC rating and 5.7 A current capacity for the target application. Cross-reference datasheet revisions to ensure compliance with current safety standards.

Selection Notes

Select this component when EMC suppression is required for high-current DC-DC converter inputs or outputs. The 806 µH inductance offers effective noise attenuation at standard switching frequencies. Consider the through-hole footprint and physical dimensions to ensure compatibility with the printed circuit board layout and enclosure constraints.

Part Context

The TCK-113 belongs to the TCK series of common mode chokes manufactured by Traco Power. This series is specifically engineered to complement Traco's isolated DC-DC converter portfolio, providing necessary EMI filtering to meet regulatory emission standards. The components are built for robust performance in commercial and industrial electronic equipment.
