TCK-116

Fixed Inductors Overview

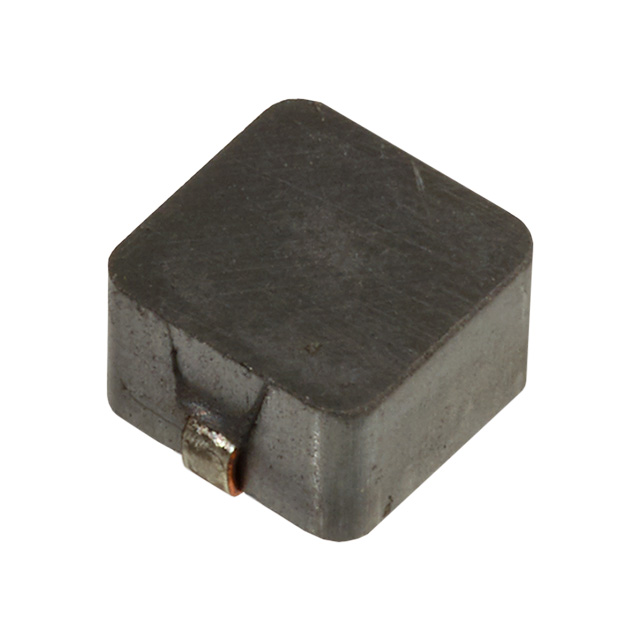

The Traco Power TCK-116 is a fixed wire-wound inductor designed for surface-mount applications. It features an inductance of 10 µH with a tolerance of ±20%. The component supports a maximum DC current of 2.3 A and has a maximum DC resistance of 200 mΩ. It operates within a temperature range of -40°C to +125°C. The physical dimensions are 5.4 mm in length, 4.7 mm in width, and 2.2 mm in height.

Fixed Inductors Feature Summary

• Unshielded wire-wound construction suitable for general-purpose filtering
• Surface-mount package optimized for automated assembly processes
• High current handling capability up to 2.3 A

Fixed Inductors Applications

• DC-DC converter input and output filtering
• Power supply circuit noise suppression
• General electronic equipment signal conditioning

Fixed Inductors Procurement Notes

Verify the manufacturer part number TCK-116 against official Traco Power documentation to ensure authenticity. Confirm that the supplier is an authorized partner to avoid counterfeit components. Check datasheet specifications for operating temperature and current ratings prior to integration. Ensure storage conditions comply with manufacturer guidelines for surface-mount devices.

Fixed Inductors Selection Notes

Select this component when a 10 µH inductance value is required with a 2.3 A current rating. The unshielded design may require consideration regarding magnetic field interference in dense layouts. Verify footprint compatibility with the 5.4 x 4.7 mm SMD package. Evaluate thermal management requirements given the 200 mΩ resistance at high currents.

Fixed Inductors Part Context

The TCK-116 belongs to the Traco Power fixed inductor series. These components are engineered for reliability in industrial and commercial power electronics. The series provides standardized values for common power conversion topologies. Traco Power emphasizes compliance with environmental standards such as RoHS and REACH for these passive components.

Fixed Inductors Replacement Considerations

Cross-reference alternative suppliers for equivalent 10 µH, 2.3 A SMD inductors. Verify pinout and mechanical dimensions match the existing PCB layout. Ensure electrical parameters including saturation current and DCR meet or exceed original specifications.
