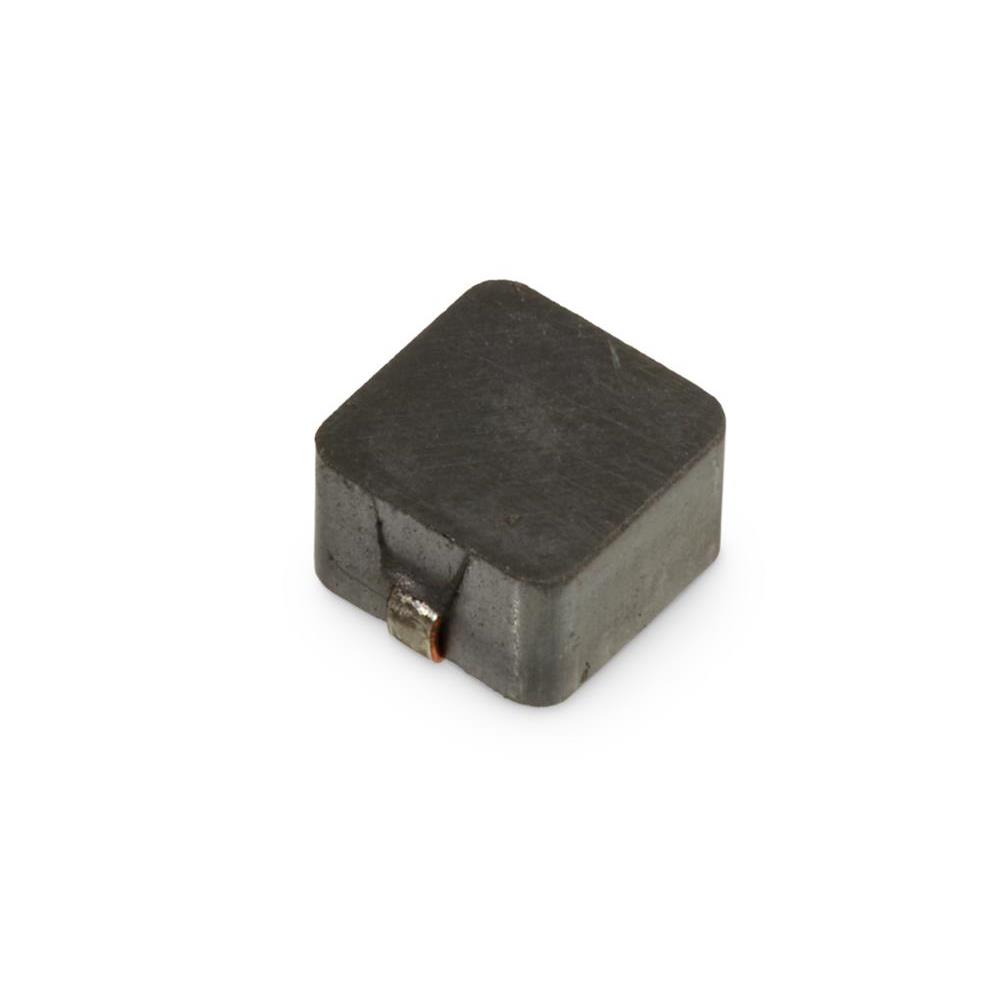

TCK-159 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Traco Power. Its product description is INDUCTORS. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for TCK-159
- Description：INDUCTORS
- Series：-
- Mfr：Traco Power
- Package：Strip
- Type：-
- Material - Core：-
- Inductance：1 µH
- Tolerance：±20%
- Current Rating (Amps)：5:00 AM
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：22mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.157" L x 0.157" W (4.00mm x 4.00mm)
- Height - Seated (Max)：0.083" (2.10mm)
- Features：-
Fixed Inductors datasheet and documents for TCK-159
Fixed Inductors Overview
The TCK-159 is a fixed inductor manufactured by Traco Power, designed for surface-mount device (SMD) applications. It features an unshielded construction with a nominal inductance of 1 µH and a maximum DC resistance of 22 mΩ. The component supports a DC current rating of 5 A and maintains a tolerance of ±20%. It utilizes a nonstandard package configuration suitable for PCB integration.
Fixed Inductors Feature Summary
- Surface-mount design for automated assembly
- Unshielded magnetic structure
- High current handling capability
Fixed Inductors Applications
- Power supply filtering circuits
- DC-DC converter input/output stages
- General electronic equipment power distribution
Fixed Inductors Procurement Notes
Verify the specific footprint requirements against the manufacturer's official mechanical drawing prior to procurement. Confirm that the selected SMD package variant aligns with the PCB layout constraints. Ensure the supplier provides documentation confirming the component meets the specified electrical characteristics for the intended application environment.
Fixed Inductors Selection Notes
Select this component when a compact, high-current inductor is required for space-constrained designs. The 5 A rating suits applications demanding significant current handling within a small form factor. Consider the unshielded nature for potential electromagnetic interference implications in sensitive layouts compared to shielded alternatives.
Fixed Inductors Part Context
The TCK-159 belongs to Traco Power's portfolio of passive components, specifically fixed inductors. It complements the company's active power conversion products by providing necessary energy storage and filtering elements for stable operation in various power management systems.
Fixed Inductors Replacement Considerations
Consult official distributor databases for cross-referenced parts with matching 1 µH inductance and 5 A current ratings. Verify pin compatibility and thermal performance before substituting.
