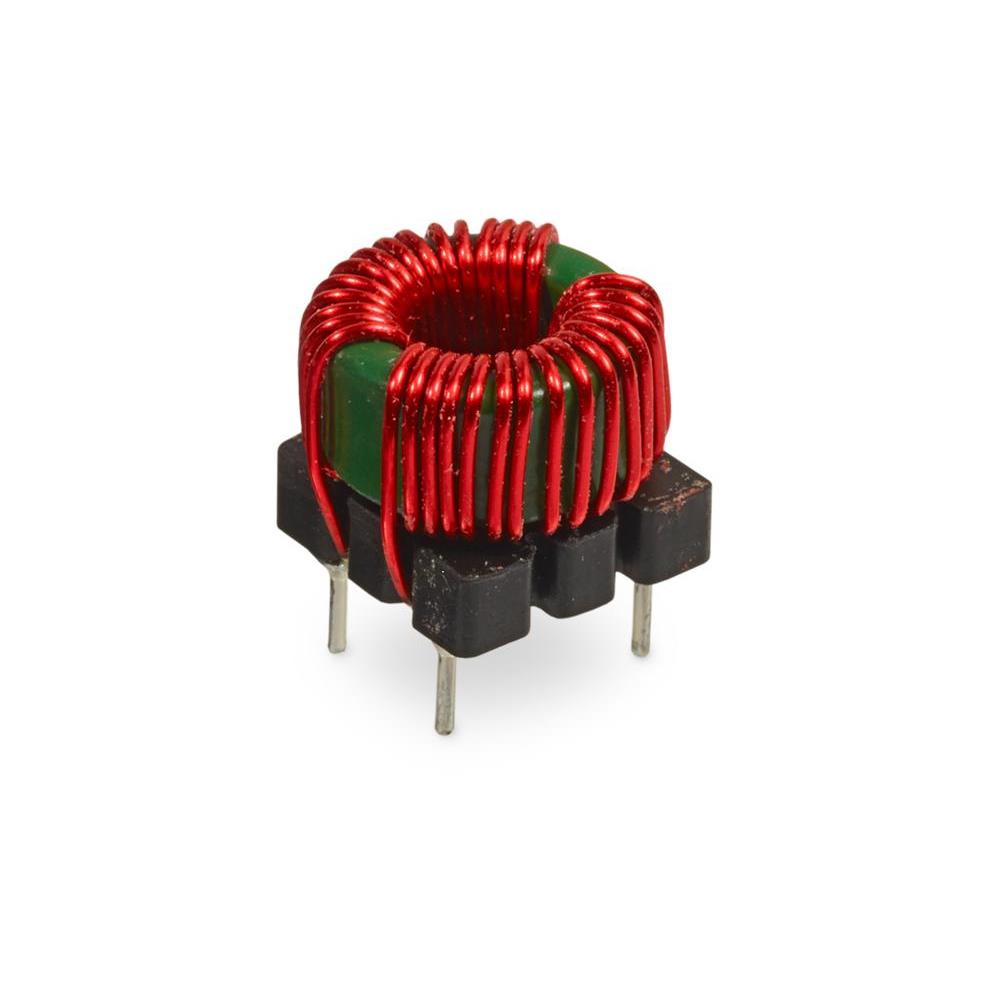

TCK-177

$5.64

Description：CMC 398UH 10.05A 2LN TH
Series：-
Mfr：Traco Power
Package：Strip

SKU:267661915ec5 Category: Common Mode Chokes Brand: Traco Power

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 398UH 10.05A 2LN TH
Series：-
Mfr：Traco Power
Package：Strip
Filter Type：-
Number of Lines：2
Current Rating (Max)：10.05A
DC Resistance (DCR) (Max)：9mOhm
Voltage Rating - DC：500V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 105°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max)：0.591" (15.00mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：398 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

TCK-177

Overview

The TCK-177 is a common mode choke manufactured by Traco Power. It features an inductance of 398 µH ±35% measured at 100 kHz and 100 mV. The component has a maximum DC resistance of 8.5 mΩ per winding and supports a rated current of 10.05 A. It operates within a temperature range from -40°C to +125°C.

Feature Summary

Provides common mode noise suppression for power lines
Designed for high current applications with low DC resistance
Constructed for reliable operation across wide temperature ranges

Applications

Power supply input filtering
EMI suppression in industrial equipment
AC/DC converter circuits

Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the required inductance tolerance and current ratings align with your circuit design requirements before finalizing procurement. Ensure compatibility with your assembly process regarding mounting style and thermal management needs.

Selection Notes

Select this component when designing circuits requiring common mode noise attenuation at 100 kHz. The 10.05 A rating suits high-power applications. Verify that the 8.5 mΩ DCR meets your efficiency targets. Consider the operating temperature range if the device will be used in harsh environments.

Part Context

This component belongs to Traco Power's passive filter series. It is distinct from their active power supply modules like the TXL series. The TCK-177 serves as a standalone EMI filter element rather than a complete power conversion unit.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Engineers should verify pinout and electrical parameters carefully when considering alternative components from other manufacturers.
