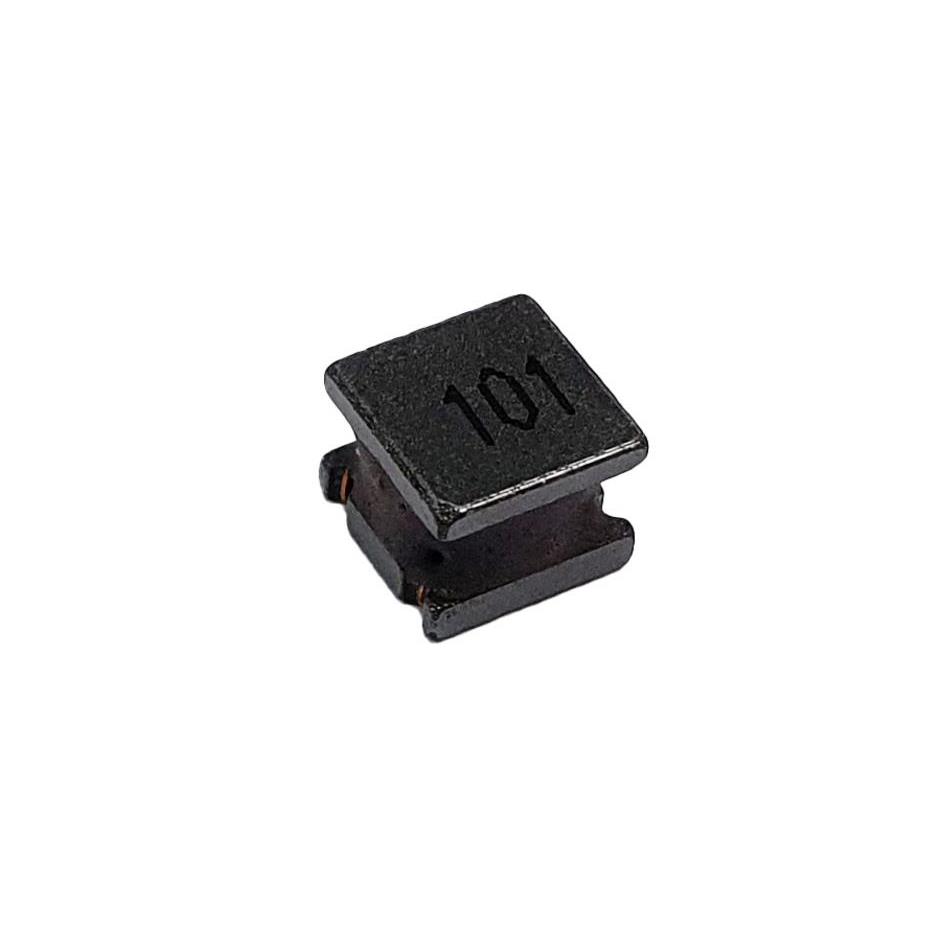

TCK-182 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Traco Power. Its product description is PWR SUPP, SUPPLIES & COND. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for TCK-182
- Description：PWR SUPP, SUPPLIES & COND
- Series：-
- Mfr：Traco Power
- Package：Strip
- Type：Wirewound
- Material - Core：-
- Inductance：100 µH
- Tolerance：±20%
- Current Rating (Amps)：800 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：589mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.193" L x 0.193" W (4.90mm x 4.90mm)
- Height - Seated (Max)：0.165" (4.19mm)
- Features：-
Fixed Inductors datasheet and documents for TCK-182
Fixed Inductors Overview
The TCK-182 is a fixed inductor from the Traco Power TCK series, designed as an unshielded wirewound component for surface-mount applications. It features an inductance of 100 µH with a tolerance of ±20%, measured at 100 kHz and 1 V. The maximum DC resistance is 589 mΩ, supporting a rated current of 800 mA. The device operates within a temperature range of -40°C to +105°C and has a physical length of 4.9 mm.
Fixed Inductors Feature Summary
- Unshielded wirewound construction suitable for general-purpose filtering
- Surface-mount design for automated PCB assembly
- High thermal stability across extended industrial temperature ranges
Fixed Inductors Applications
- DC-DC converter input or output filtering
- Signal processing circuit impedance matching
- Power supply noise suppression
Fixed Inductors Procurement Notes
Verify the specific manufacturer part number against official Traco Power documentation to confirm electrical parameters and package dimensions. Ensure that the requested component matches the required inductance value and current rating for the target application. Cross-reference datasheet revisions to guarantee compatibility with existing designs and avoid discrepancies in technical specifications.
Fixed Inductors Selection Notes
Select this component based on its 100 µH inductance and 800 mA current handling capability. Consider the unshielded nature of the wirewound design when evaluating potential magnetic interference with nearby sensitive components. Verify that the surface-mount footprint aligns with the PCB layout constraints and manufacturing capabilities.
Fixed Inductors Part Context
The TCK-182 belongs to the TCK series of power inductors manufactured by Traco Power. This series focuses on providing reliable passive components for electronic circuits, emphasizing standard surface-mount packaging and consistent electrical performance for integration into various power management and signal conditioning systems.
Fixed Inductors Replacement Considerations
Consult official Traco Power substitution guides for verified equivalent parts. Do not assume cross-compatibility with generic inductors without verifying inductance, current ratings, and physical dimensions against the original specification sheet.
