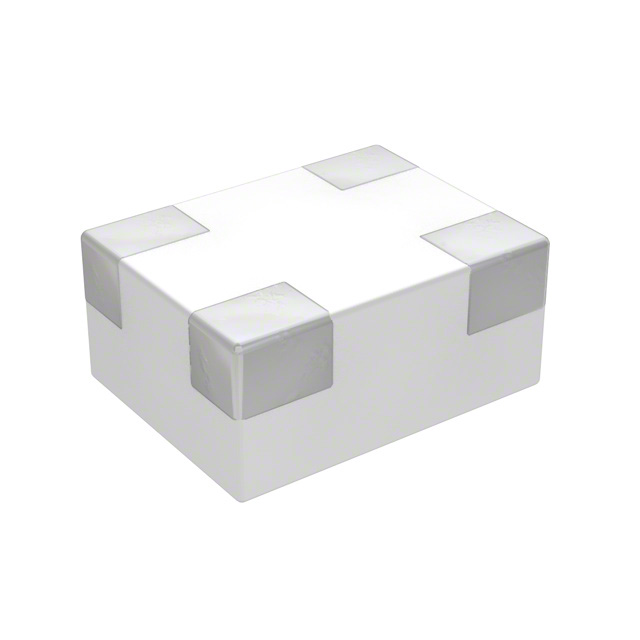

TCM0605G-650-2P-T201

$0.48

Description：CMC 100MA 2LN 65 OHM SMD
Series：TCM-G
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f2be8a25a14c Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 100MA 2LN 65 OHM SMD
Series：TCM-G
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：2.7Ohm
Voltage Rating - DC：10V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max)：0.014" (0.35mm)
Package / Case：0202 (0505 Metric), 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：65 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

TCM0605G-650-2P-T201

Overview

The TCM0605G-650-2P-T201 is a signal line filter manufactured by TDK Corporation. It features a voltage rating of 10V and a current rating of 100mA. The component has an impedance of 65 Ohms at 100 MHz and a maximum DC resistance of 2.7 Ohms. It is designed for surface mount applications.

Feature Summary

Signal line filtering capability
Dual-line configuration
Surface mount design

Applications

High-speed signal processing
Data transmission lines
Electronic circuit protection

Procurement Notes

Verify the exact part number against official TDK documentation to ensure compatibility with specific circuit requirements. Confirm that the impedance and current ratings align with the target application's electrical specifications before procurement.

Selection Notes

Consider the 10V voltage rating and 100mA current limit when selecting this component. Ensure the 65 Ohm impedance at 100 MHz meets the noise suppression needs of the high-speed signal lines in the design.

Part Context

This component belongs to TDK's TCM series of common mode filters. It is designed for compact electronic devices requiring efficient noise reduction in dual-line signal paths while maintaining a small footprint suitable for modern surface mount technology.

Replacement Considerations

Check for direct substitutes within the TCM series or other manufacturers offering similar 65 Ohm impedance and 100mA current ratings in a comparable package size.
