TCM0806T-060-2P

Overview

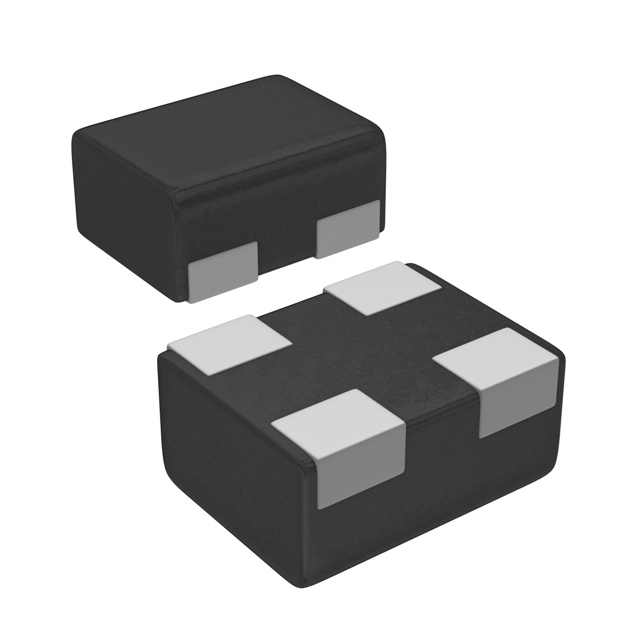

The TCM0806T-060-2P is a thin-film common mode filter manufactured by TDK Corporation. It features a compact surface-mount design with two channels, providing an impedance of 6 Ohms at 100 MHz and a maximum DC current rating of 100 mA. The component utilizes a 0806 package footprint to reduce high-frequency noise emission, particularly in the 5 GHz band. This ensures signal integrity is maintained without degradation when deployed in communication circuits for high-speed interfaces such as Thunderbolt, USB 3.0, and Serial ATA Gen III.

Feature Summary

• Thin-film construction designed for high-frequency noise reduction
• Maintains signal integrity in high-speed interface circuits
• Compact surface-mount form factor for space-constrained systems

Applications

• Thunderbolt interface circuits
• USB 3.0 data lines
• Serial ATA (Gen III) connections

Procurement Notes

Verify the specific suffix designation, as variants like -T200 or -T201 may exist within the TCM-T series. Confirm RoHS compliance status through official documentation before integration. Ensure the selected variant matches the required packaging format for automated assembly processes. Cross-reference the part number against the manufacturer's current production status to avoid obsolete components.

Selection Notes

Select this component for applications requiring effective common mode noise suppression in high-speed digital signals. The 6 Ohm impedance at 100 MHz targets specific interference frequencies while preserving signal quality. Evaluate the 100 mA current rating against the operational requirements of the target circuit. Consider the physical dimensions for PCB layout constraints in dense electronic assemblies.

Part Context

This component belongs to the TCM-T series of thin-film common mode filters from TDK Corporation. These devices are engineered specifically for signal line filtering in modern electronic systems where space is limited. The series addresses the growing need for noise mitigation in high-bandwidth communication protocols without compromising signal fidelity.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing designs by matching impedance characteristics and physical footprint dimensions.
