TCM1210G-650-2P-T200

Overview

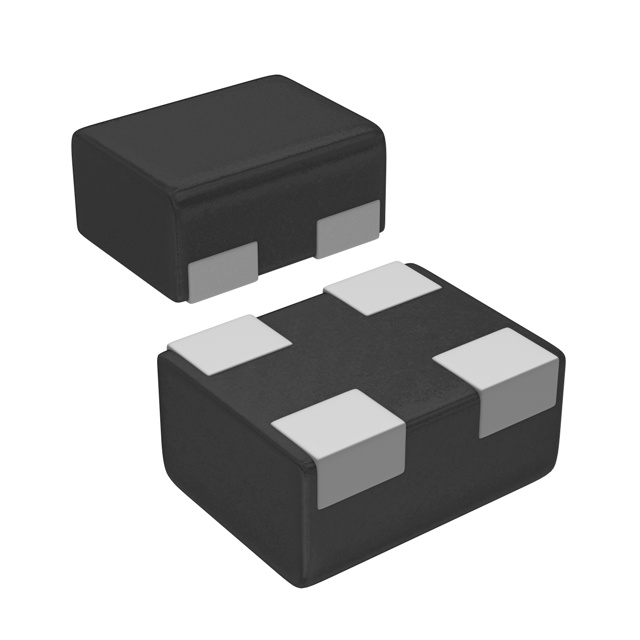

The TCM1210G-650-2P-T200 is a two-line common mode filter designed for high-speed differential signal lines. It features an impedance of 65 Ohms at 100 MHz and a rated current of 100 mA. The component utilizes a surface mount 0504 (1210 metric) package with four leads, measuring 1.25 mm in length, 1.00 mm in width, and a maximum height of 0.70 mm. It operates within a temperature range of -25°C to 85°C and complies with RoHS3 standards.

Feature Summary

• Engineered specifically for suppressing electromagnetic interference on high-speed differential signal lines.
• Provides effective common mode noise attenuation while maintaining signal integrity for data transmission.
• Utilizes a compact surface mount footprint suitable for space-constrained printed circuit board layouts.

Applications

• High-speed serial data interface protection
• Differential signaling line filtering
• Common mode noise suppression in compact electronic modules

Procurement Notes

Verify the specific impedance value and current rating against the official TDK datasheet before integration. Confirm that the 0504 package dimensions align with the target PCB land pattern. Ensure the operating temperature range meets the environmental requirements of the final assembly. Check for any recent lifecycle status updates regarding availability.

Selection Notes

Select this component when designing circuits requiring common mode filtering for differential signals with low current demands. The 65 Ohm impedance offers a balance between noise suppression and signal loss at 100 MHz. Consider the small 1210 metric package size for applications where board real estate is limited. Ensure the 100 mA current rating exceeds the maximum expected signal current to prevent saturation.

Part Context

This part belongs to the TCM-G series of common mode filters manufactured by TDK Corporation. The series focuses on providing EMI suppression solutions for modern high-speed digital interfaces. Components in this family are characterized by their small form factor and consistent electrical performance across various impedance values.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components by matching impedance, current rating, and package dimensions through official manufacturer cross-reference tools.

FAQ

What is the impedance of the TCM1210G-650-2P-T200 at 100 MHz?

The impedance is 65 Ohms at a frequency of 100 MHz.

What is the maximum operating temperature for this component?

The component supports an operating temperature range up to 85°C.
