TCM3-211-RC

$2.98

Description：CMC 217UH 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tray

SKU:aa904a5dd05e Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 217UH 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：-
DC Resistance (DCR) (Max)：26mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-20°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.591" L x 0.441" W (15.00mm x 11.20mm)
Height (Max)：0.283" (7.20mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：217 µH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

TCM3-211-RC

Overview

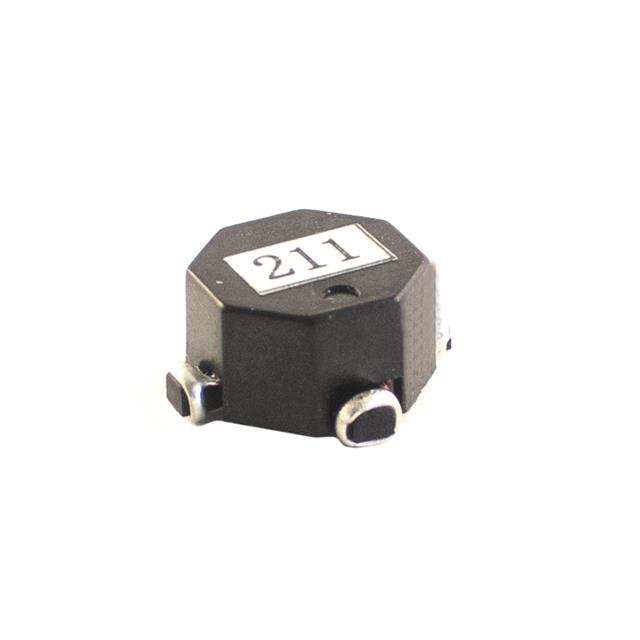

The TCM3-211-RC is a surface-mount common mode choke manufactured by Allied Components International. It features two lines and has an inductance of 217uH. The component is RoHS compliant and lead-free, designed for high-frequency noise suppression in electronic circuits.

Feature Summary

Surface mount construction for automated assembly
Dual-line configuration for common mode noise reduction
RoHS compliant and lead-free manufacturing

Applications

High-frequency noise suppression in signal lines
EMI filtering in compact electronic devices
Power supply input/output filtering

Procurement Notes

Verify the exact inductance value of 217uH against design requirements. Confirm surface mount package compatibility with PCB footprint. Ensure RoHS compliance meets regulatory standards for the target market. Check datasheet for current rating limits to prevent saturation during operation.

Selection Notes

Select this component when dual-line common mode filtering is required in a surface-mount application. Consider the 217uH inductance value for the specific frequency range of interference to be suppressed. Verify physical dimensions fit within the available board space constraints.

Part Context

Allied Components International specializes in magnetic components including inductors and chokes. The TCM3 series represents their line of surface-mount common mode chokes designed for compact electronics requiring effective EMI mitigation.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Verify pinout and electrical characteristics if considering alternative manufacturers.
