TCMT1102

Overview

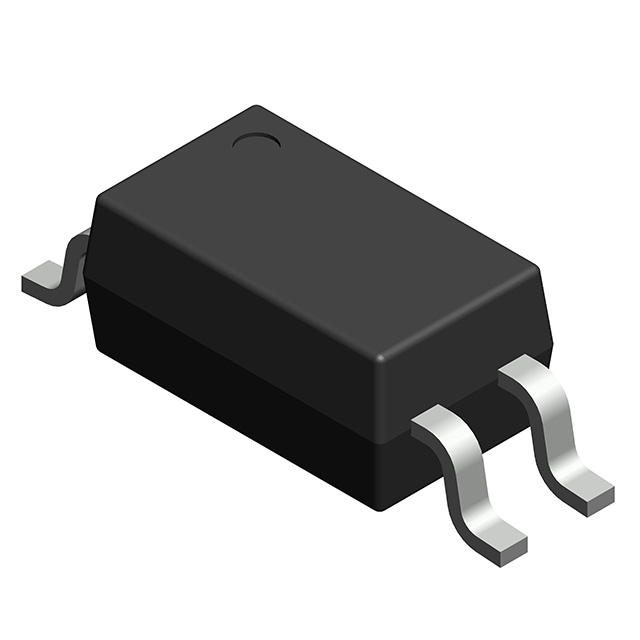

The TCMT1102 is a single-channel phototransistor output optocoupler manufactured by Vishay Semiconductor Opto Division. It integrates a gallium arsenide infrared-emitting diode optically coupled to an NPN phototransistor within a compact SOP-4 surface-mount package. The device provides high isolation with a rated insulation voltage of 3750 Vrms. Key electrical parameters include a maximum collector-emitter voltage of 70 V, a maximum collector current of 50 mA, and a forward voltage of 1.6 V at 60 mA forward current. The current transfer ratio ranges from 63% to 125%, with rise and fall times of 5.5 µs and 7 µs respectively.

Feature Summary

• High isolation voltage capability for safe signal transmission between isolated circuits
• Compact half-pitch mini-flat SOP-4 surface-mount package design
• Optical coupling between gallium arsenide infrared LED and NPN phototransistor

Applications

• General-purpose signal isolation in industrial control systems
• Interface circuits requiring galvanic separation between low-voltage logic and higher voltage loads
• Power supply feedback loops for noise immunity

Procurement Notes

Verify the specific ordering suffix against the official Vishay datasheet to ensure correct packaging and tape-and-reel specifications. Confirm that the component meets RoHS directives if required by your assembly process. Cross-reference the manufacturer part number with authorized distributors to ensure authenticity and traceability. Check for any recent product change notifications regarding pinout or material composition updates before finalizing procurement.

Selection Notes

Select this component when a single-channel isolation barrier is required with moderate speed characteristics. The 70 V collector-emitter voltage rating suits applications involving lower voltage switching loads. Ensure the input forward current does not exceed 60 mA to maintain reliability. Consider the SOP-4 footprint constraints during PCB layout. Verify that the 3750 Vrms isolation rating meets the safety standards applicable to the target equipment classification.

Part Context

The TCMT1102 belongs to Vishay's family of transistor-output optocouplers designed for general-purpose isolation. It shares architectural similarities with related models like the TCMT1002 but offers specific performance metrics tailored for standard digital and analog signal transfer. The device is part of Vishay's broader portfolio of semiconductor solutions focused on cost-effective and reliable optoelectronic isolation components for mass-market electronics.

Replacement Considerations

The TCMT1103 is documented as a comparable industry-standard alternative within the same Vishay series. Verify pin compatibility and electrical parameter overlaps before substitution. Other generic replacements may exist but require rigorous validation of isolation voltage and current transfer ratio limits.
