TD-8.192MBD-T

Oscillators Overview

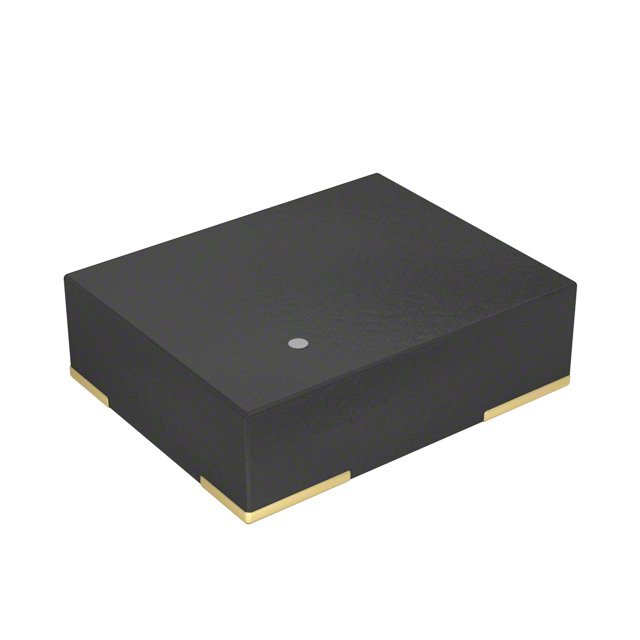

The TD-8.192MBD-T is a MEMS oscillator manufactured by TXC Corporation, operating at a frequency of 8.192 MHz with CMOS output. It functions on a 3.3V supply voltage and features enable/disable functionality. The unit offers a frequency stability of ±25ppm and operates within a temperature range of -40°C to +85°C. It utilizes a 4-SMD, No Lead package measuring 2.50mm x 2.00mm x 0.80mm maximum height. The component draws a maximum current of 25mA and is supplied in tape and reel packaging.

Oscillators Feature Summary

• Utilizes silicon MEMS technology for stable timing generation
• Integrates enable and disable control functionality
• Supports surface mount installation in compact packages

Oscillators Applications

• Timing and synchronization circuits
• Digital signal processing systems
• Embedded communication interfaces

Oscillators Procurement Notes

This component is officially listed as obsolete or end-of-life by the manufacturer. Availability is restricted to existing stock or third-party distributors. Verify authenticity and condition carefully when sourcing from non-direct channels. Ensure compatibility with legacy designs before procurement.

Oscillators Selection Notes

Select this part for applications requiring an 8.192 MHz CMOS clock source with low power consumption. Consider the ±25ppm stability requirement and industrial temperature range suitability. The 3.3V supply and enable pin must align with system logic levels and power management strategies.

Oscillators Part Context

Part of the TD series MEMS oscillators from TXC Corporation. This series provides alternatives to traditional quartz crystals with improved shock resistance and smaller form factors. The TD model line supports various frequencies and voltage options for diverse electronic design needs.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available due to the component's obsolete status. Designers should evaluate equivalent MEMS oscillators from other manufacturers that match the 8.192 MHz frequency, 3.3V supply, and 4-SMD package dimensions.
