TD.95.6H31

Antennas RF Overview

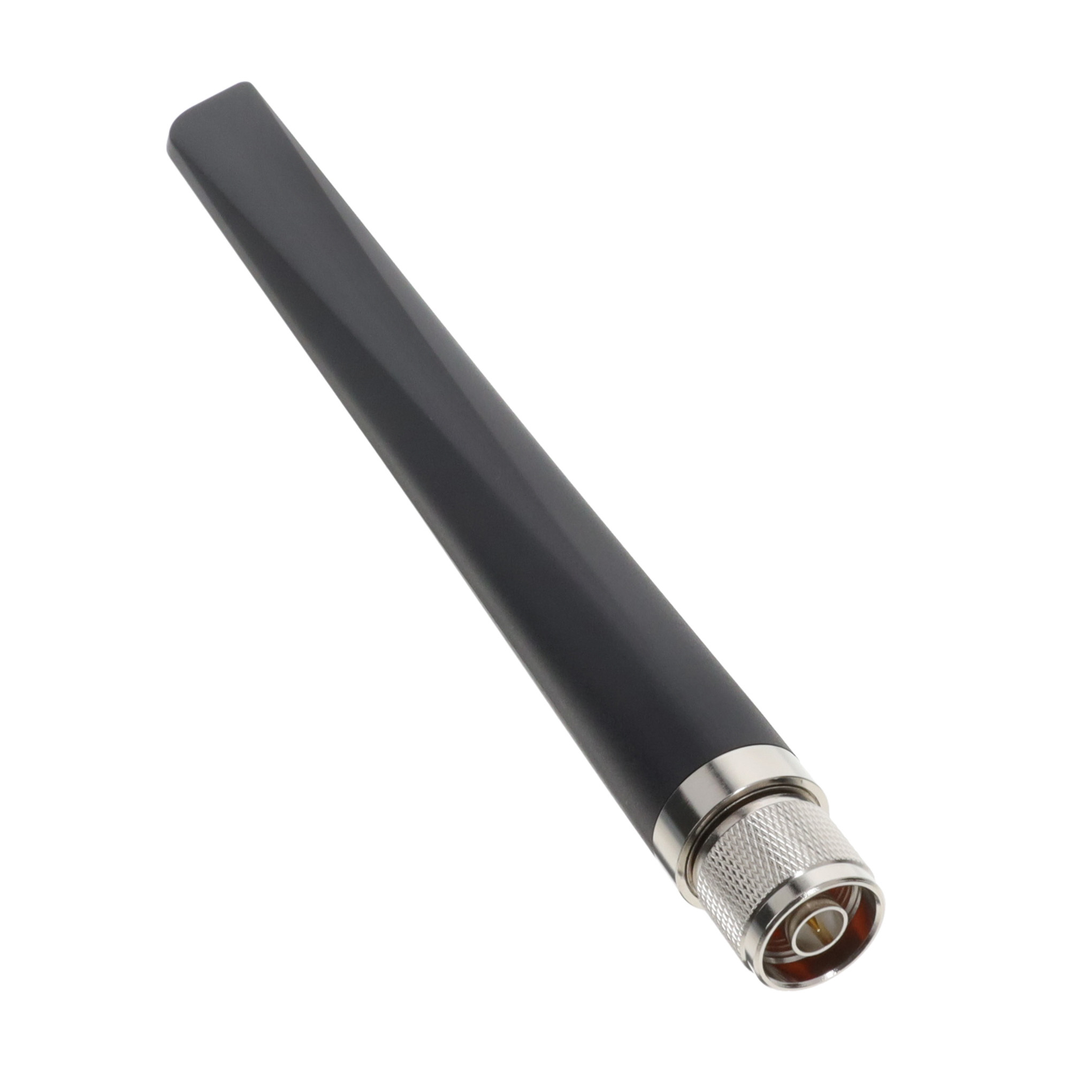

The Taoglas TD.95.6H31 is a high-performance, terminal mount omnidirectional dipole antenna designed for ISM band applications. It operates within the frequency range of 868 MHz to 915 MHz. The component features a linear polarization and an N-Type male connector for secure mounting. It supports a maximum power handling capacity of 10 W and maintains a characteristic impedance of 50 ohms. The antenna provides a gain of 1.54 dBi, ensuring reliable signal transmission for long-range communication networks.

Antennas RF Feature Summary

• Omnidirectional radiation pattern for consistent coverage
• Terminal mount design for robust installation
• N-Type male connector interface
• Linear polarization configuration

Antennas RF Applications

• LoRa communication systems
• SigFox network infrastructure
• ISM band wireless devices
• Meshtastic mesh networking

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required connector type and length specifications. Confirm the frequency band alignment with local regulatory requirements for ISM usage. Ensure the mounting environment supports the terminal mount design characteristics. Cross-reference the datasheet for environmental ratings relevant to the deployment site.

Antennas RF Selection Notes

Select this model when an omnidirectional dipole is required for 868/915 MHz operations. The N-Type connector suits applications needing durable mechanical connections. Consider the 10 W power rating for higher output transmitters. The 1.54 dBi gain offers standard performance for general coverage needs without excessive directivity.

Antennas RF Part Context

This component belongs to the Taoglas Blade series, which focuses on high-performance terminal mount antennas. The series targets industrial and commercial IoT deployments requiring reliable connectivity. The TD.95.6H31 specifically addresses the European and North American ISM bands through its dual-frequency capability.

Antennas RF Replacement Considerations

Check for compatible N-Type female counterparts in existing assemblies. Verify that alternative models support the same 868-915 MHz range. Ensure mechanical dimensions allow for similar terminal mounting configurations. Confirm impedance matching remains at 50 ohms for system integrity.
