TDA38807XUMA1

$1.73

Description：HIGHLY EFFICIENT DC-DC BUCK REGU
Series：-
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:105b1eb22a1a Category: Voltage Regulators - DC DC Switching Regulators Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TDA38807XUMA1 is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is HIGHLY EFFICIENT DC-DC BUCK REGU. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for TDA38807XUMA1

Description：HIGHLY EFFICIENT DC-DC BUCK REGU
Series：-
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：2.7V
Voltage - Input (Max)：16V
Voltage - Output (Min/Fixed)：0.9V
Voltage - Output (Max)：5.5V
Current - Output：6A
Frequency - Switching：600kHz, 1.1MHz, 2MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

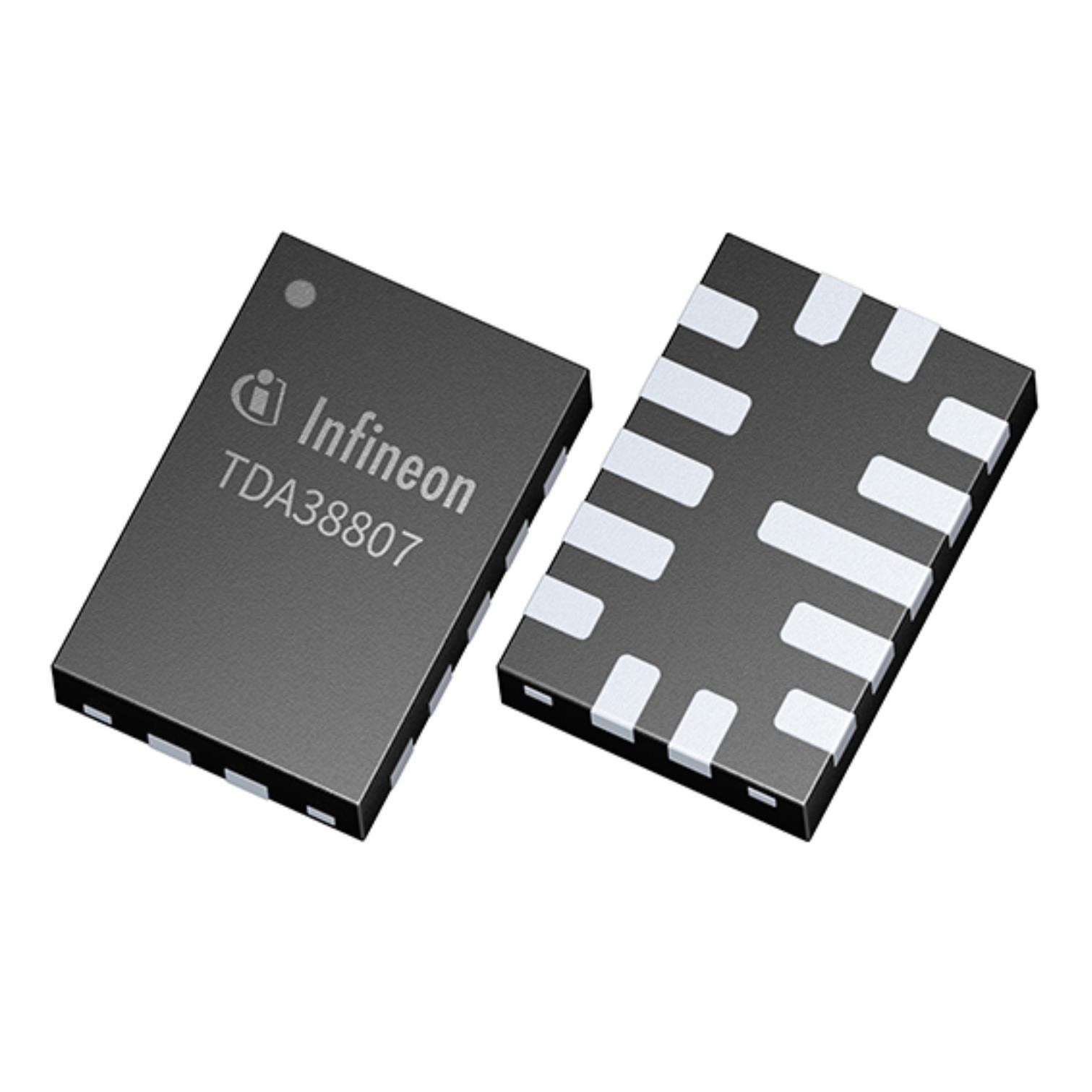

Package / Case：14-UFQFN
Supplier Device Package：PG-TSNP-14-6
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for TDA38807XUMA1

TDA38807XUMA1

Voltage Regulators - DC DC Switching Regulators Overview

The TDA38807XUMA1 is a synchronous buck regulator from Infineon Technologies, designed for point-of-load applications. It operates with an input voltage range of 2.7 V to 16 V and delivers up to 6 A output current. The adjustable output voltage spans from 900 mV to 5.5 V. Switching frequencies are configurable at 600 kHz, 1.1 MHz, or 2 MHz. Housed in a 14-UFQFN package, it supports surface mount installation and functions within a junction temperature range of -40°C to +125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Synchronous rectification topology for high efficiency
Configurable switching frequency options
Adjustable output voltage capability
Integrated shutdown control

Voltage Regulators - DC DC Switching Regulators Applications

Point-of-load (POL) voltage regulation
Embedded computing systems
Telecommunications infrastructure power distribution

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix XUMA1 to confirm reel packaging configuration. Ensure compatibility with the target input voltage range of 2.7 V to 16 V. Confirm thermal management requirements for the 14-UFQFN package under maximum load conditions. Check moisture sensitivity level handling procedures during assembly.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a single-output synchronous buck converter is required for currents up to 6 A. It is suitable for designs needing flexible switching frequency selection between 600 kHz and 2 MHz. Consider the 14-UFQFN footprint for space-constrained PCB layouts requiring surface mount technology.

Voltage Regulators - DC DC Switching Regulators Part Context

This device belongs to the TDA38807 series of integrated POL voltage regulators. These components utilize OptiMOS technology for optimized power performance. The series targets efficient DC-DC conversion in compact form factors for industrial and communication equipment.
