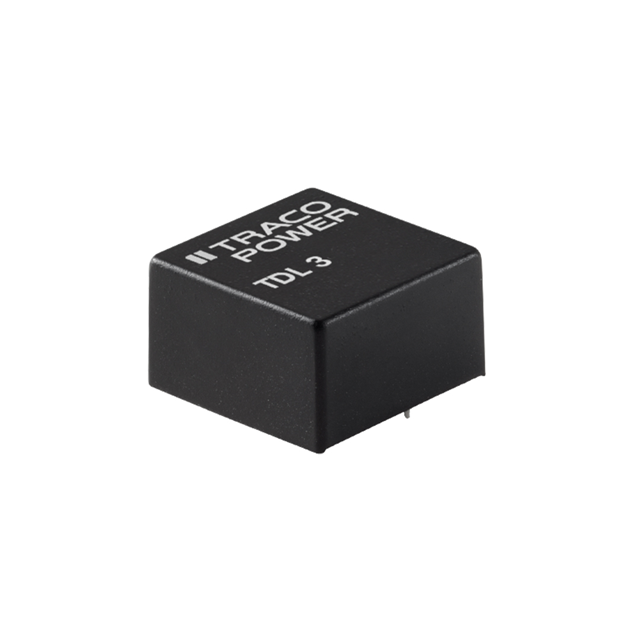

TDL 3-2410

TDL 3-2410 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 3.3V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TDL 3-2410

• Description：DC DC CONVERTER 3.3V 2W
• Series：TDL 3 (3W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：600mA
• Power (Watts)：2 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OCP, SCP
• Operating Temperature：-40°C ~ 70°C
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module, 4 Leads
• Size / Dimension：0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TDL 3-2410
