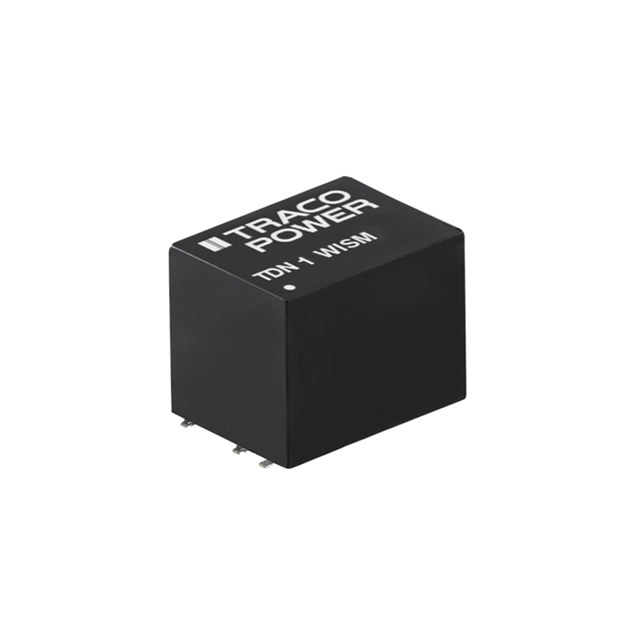

TDN 1-1215WISM

TDN 1-1215WISM is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 24V 1.1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TDN 1-1215WISM

• Description：DC DC CONVERTER 24V 1.1W
• Series：TDN 1WISM (1W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：18V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：45mA
• Power (Watts)：1.1 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 90°C
• Efficiency：80%
• Mounting Type：Surface Mount
• Package / Case：7-SMD Module, 6 Leads
• Size / Dimension：0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TDN 1-1215WISM
